The Zen Triode Anniversary Edition

OTL
Headphone amp /
Preamplifier



Guarenteed to make your amp sound twice as good with no loss in transparency or your money back!



Hand made in the USA

LIFETIME WARRANTY





Overview

This is our anniversary edition of the Select ZenTriode Preamp previously known as the CSP.   If you've ever wanted a World Class tube preamp or a headphone amplifier that's dead quiet and can drive anything you throw at it with musicality and grace, then this is probably it.  It was originally designed as a replacement for our top of the line MLB headphone amp and in the process also became a replacement for our popular CSP preamp. Besting the sound, peformance and looks of both, this one really pegs the value meter!  Read the designer's notes for the full story.

Key Points

Single Ended Triode, Stereo Preamplifier, Pure Class A1 operation, Dual Inputs, Stereo and Mono Outputs and Headphone Jack.  User adjustable gain on each channel and front mounted Alps volume control. Hand-Built in the USA with USA parts.  World voltage compatible. Lifetime warranty.

Woods

All amps are shipped with a solid walnut base by default. You may choose to have it built in a black base at you option, no extra charge. Bases are user interchangeable.  Custom hadwood bases in exotic woods can also be made for an extra fee.

Tubes

Each amp is shipped with your choice of 6N1P, 6DJ8 or 6922 tubes. Also a top grade 5Y3GT rectifier tube is included. This amp is self biasing so there is virtually no maintenance, very low heat, long tube life.






  Zen Triode Preamp / Headphone amp

MODEL CSP2
$795.00

Complete with premium tubes
also available in
220/240VOLT 50/60 HZ


We accept MC VISA AMX DISC JPC and Paypal

CSP2

120/240 volt

$795.00

add to cart ADD TO CART

10 % RESTOCK FEE

Buy NowView Cart or Check Out

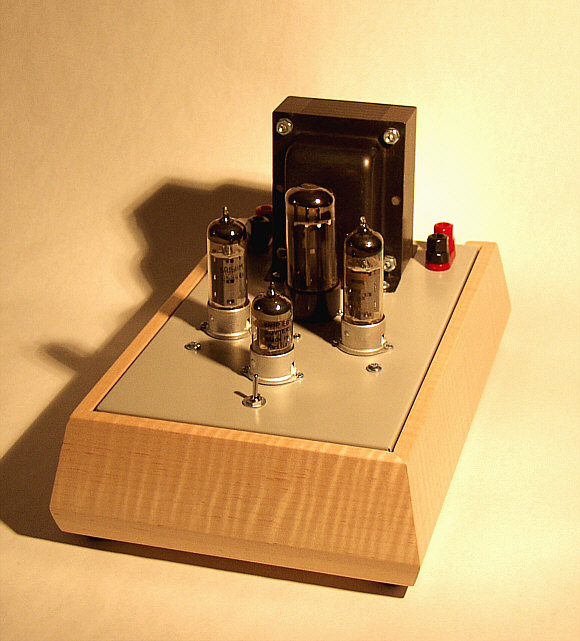

SE84C in optional wood base.  Click image for hi-res picture


QUICK FEATURES

  • Dual Inputs
  • Adjustable gain for each channel
  • OTL Headphone output
  • Master volume control
  • Stereo and Mono outputs
  • Self biasing - no adjustments needed
  • 500% oversize power supply
  • Lifetime warranty
  • Zero negative feedback
  • Single ended triode
  • Point to point wiring
  • Hand made in USA
  • Top grade internal parts
  • Solid walnut base
  • Powder coat gloss finish
  • Non magnetic chassis
  • Uses 6DJ8, 6922, 6N1P, 6N2P tubes in any combination.
  • Tube rectification is 5Y3GT, 5AR4, 5U4, 274B
  • 0~36 Volts adjustable output level for each channel



MORE INFO

Features and Specifications

Designer's notes

Reviews of our products

Support Forum

Related Articles

Owner's manual in .pdf format.
