Message started by HellionDarklord on 07/11/24 at 01:06:29

Title: Does it look like this might work?
Post by HellionDarklord on 07/11/24 at 01:06:29

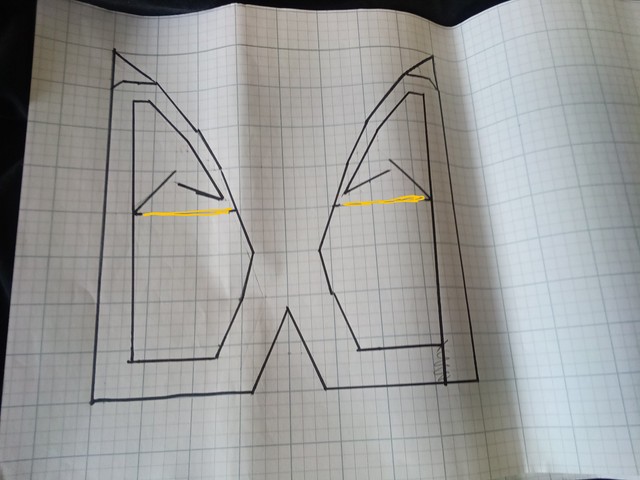

Graham Holliman Velocity coupled infra Bass loudspeaker mixed with the wicked one speaker..... I messed up the drawing but you can see what I am working towards. The yellow lines are where they subwoofers are mounted below. Thanks for any help and advice.

Title: Re: Does it look like this might work?
Post by HellionDarklord on 07/11/24 at 22:13:36

My model of loudspeaker should be more efficient...the best I can do with God's help.

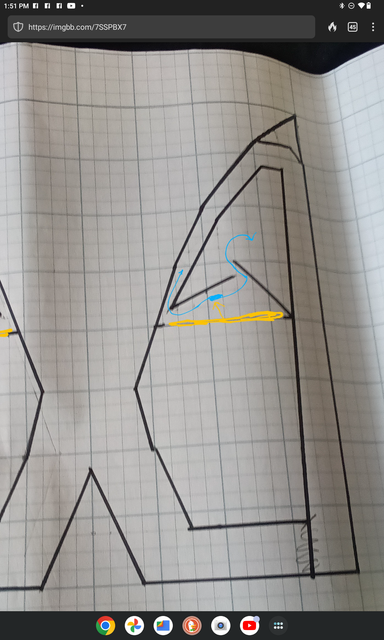

The distance between the Helmholtz resonator and the horn throat is approximately the same. (blue line.... Not enough to matter and is better than the bottle neck in Graham Holliman's patent) It has taken me since 2006 to understand how Graham's loud speaker works. Well.... I understand it enough now to where God could lead me in the basic structure like Moses construction of the temple.
