How Much Vertical Rack Space For an Amp? (Read 6575 times)
GroovySauce
Seasoned Member
Posts: 864
How Much Vertical Rack Space For an Amp?
01/16/20 at 03:34:27
I'm going to make a custom rack to put my turntable and all my stereo equipment on.
How much room should I leave above for a Torii and other amps?
Example with the Torii.
Manual states it's 7.75" so lets call it 8"
ZAFP 3"
So we are at 11" will 7" above that be good for ventilation an tube rolling?
18" space between the shelves seem like a lot, I would rather have extra space for ventilation and rolling tubes than too little.
The rack will be open on all sides.
Thanks for the feedback.
Back to top
Maximus NEO TT|ViV Rigid Float TA | Phasemation PP-200 or Hana ML | Sutherland Little Loco MK2 | Innuos ZENith MK3 | LampizatOr GA TRP | EMIA Remote Autoformer | STL "Super Tube Rectifier" STR-1002 | SRA Cables | PAP Quintet 15 1.6 Voxativ |Torus AVR15
IP Logged
Showme
Seasoned Member
Posts: 302
Re: How Much Vertical Rack Space For an Amp?
Reply #1 -
01/16/20 at 15:40:28
Just an idea for you. I built an audio rack that I'm really liking. I bought a butcher block countertop 72" X 36" and cut it into 4 shelves 36" X 18" and then used 5/8" all-thread rods for the uprights. Used stainless washers and nuts above and below the shelves. It's extremely rigid and totally adjustable. Past the WAF without a problem.
Back to top
IP Logged
GroovySauce
Seasoned Member
Posts: 864
Re: How Much Vertical Rack Space For an Amp?
Reply #2 -
01/17/20 at 00:29:20
I like that idea! I’m not sure on the final design yet so it will be a consideration.
Have photos?
The only place i can put a rack is between my speakers. Now I’m concerned that it’s going to mess with the sound stage. It will have to be tall if i want two racks with 18” of vertical space.
Back to top
Maximus NEO TT|ViV Rigid Float TA | Phasemation PP-200 or Hana ML | Sutherland Little Loco MK2 | Innuos ZENith MK3 | LampizatOr GA TRP | EMIA Remote Autoformer | STL "Super Tube Rectifier" STR-1002 | SRA Cables | PAP Quintet 15 1.6 Voxativ |Torus AVR15
IP Logged
Showme
Seasoned Member
Posts: 302
Re: How Much Vertical Rack Space For an Amp?
Reply #3 -
01/17/20 at 15:05:20

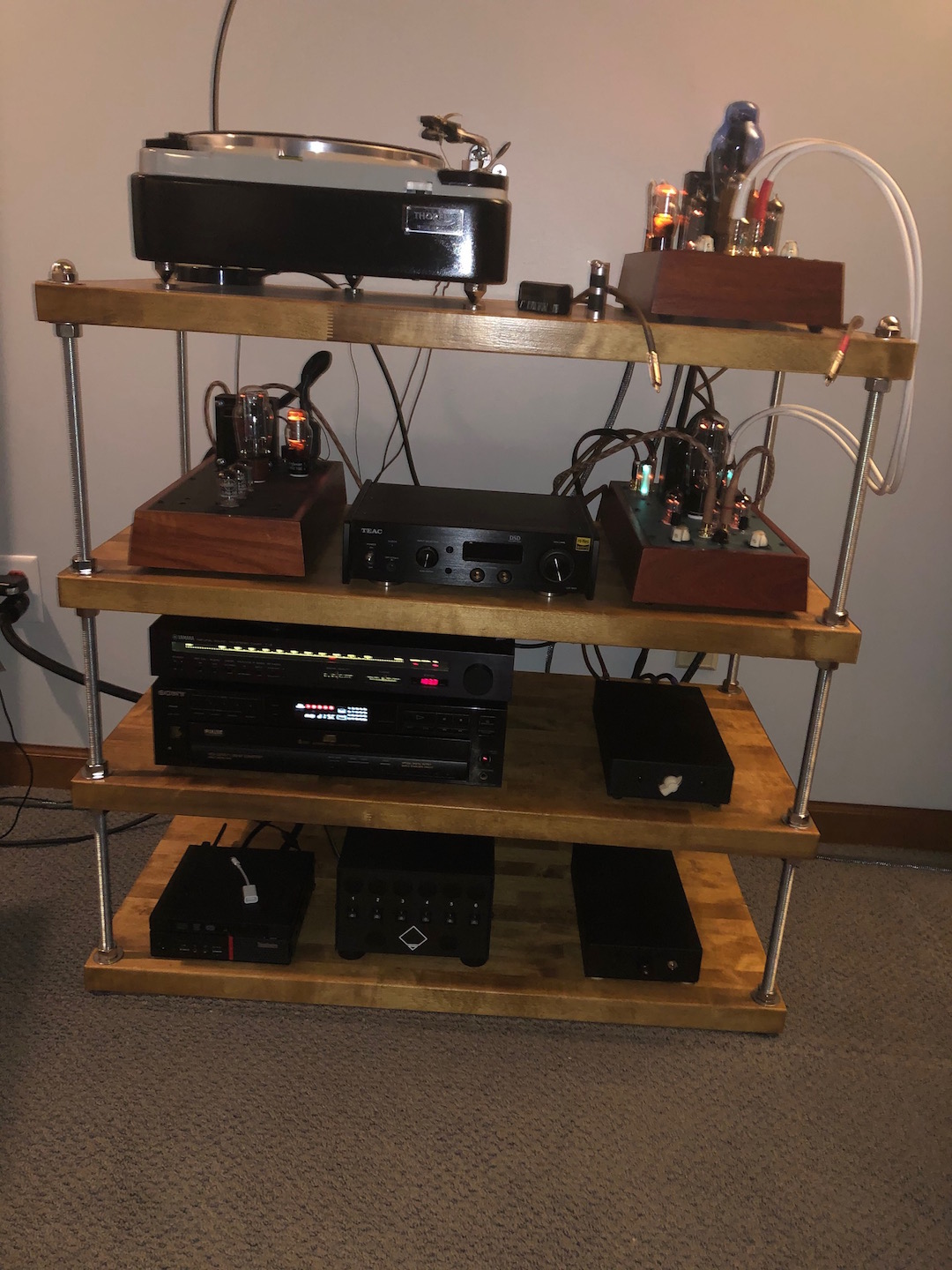

Here's a poor photo to give you aI idea. Sorry quality is so poor.
Back to top
IP Logged
funch
Seasoned Member
Posts: 157
Re: How Much Vertical Rack Space For an Amp?
Reply #4 -
01/17/20 at 18:40:55
https://www.tnt-audio.com/clinica/flexye.html
Back to top
IP Logged
Showme
Seasoned Member
Posts: 302
Re: How Much Vertical Rack Space For an Amp?
Reply #5 -
01/17/20 at 23:00:03
Yep, that’s the ticket.
Back to top
IP Logged
GroovySauce
Seasoned Member
Posts: 864
Re: How Much Vertical Rack Space For an Amp?
Reply #6 -
01/18/20 at 06:20:39
Showme, That looks really slick! what are the dimensions? Would you change anything if you did it over again?
Thanks for the link
Back to top
Maximus NEO TT|ViV Rigid Float TA | Phasemation PP-200 or Hana ML | Sutherland Little Loco MK2 | Innuos ZENith MK3 | LampizatOr GA TRP | EMIA Remote Autoformer | STL "Super Tube Rectifier" STR-1002 | SRA Cables | PAP Quintet 15 1.6 Voxativ |Torus AVR15
IP Logged
Showme
Seasoned Member
Posts: 302
Re: How Much Vertical Rack Space For an Amp?
Reply #7 -
01/18/20 at 14:51:41
The butcher block was 72" X 36" cut into 4 equal pieces. The all-thread rods are 36" and I believe 5/8. I drilled the holes for the rods 1/8" larger to ease the work. The stainless washers and nuts secure everything really solid. The only change I would make is I used a poly finish and I think I would oil finish the shelves if I had overs. The poly works fine though.
Back to top
IP Logged
Radarek
Senior Member
Posts: 75
Re: How Much Vertical Rack Space For an Amp?
Reply #8 -
01/18/20 at 18:18:36

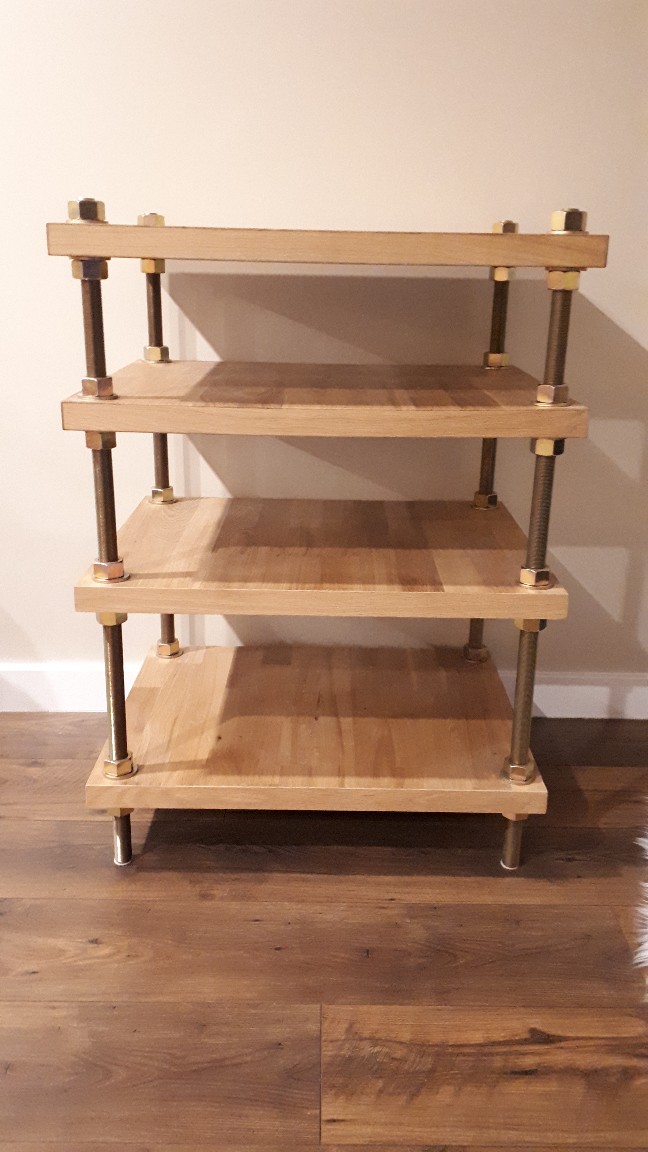

I made it a while ago. Took me 4 hours to do, cost just over 200 cad... 60 for countertop from ikea and 140 for hardware...1" rods... super heavy... like over 120lbs for sure.
Back to top
IP Logged
4krow
Seasoned Member
IMAGINE WHIRLLED
PEAS
Posts: 1608
Re: How Much Vertical Rack Space For an Amp?
Reply #9 -
01/18/20 at 19:44:23
I forgot about making something like this years ago. I used brass pipe and pipe stanchions. Kinda expensive, but that is what I would do again. really stable, just like with the rods.
Back to top
Decware 34I.3 integrated amp/Forte' 3 bass amp/Velodyne SMS-1 bass mngmnt system/Decware ZOB speakers/Audio Nirvana 8" bass drivers/Xiang Seng DAC/ LR Audio Computer/Rega Apollo R CDP/Emotiva ERC3 CDP/BPT 3.0 power cond.
IP Logged
Hop1per
Verified Member
Posts: 3
Re: How Much Vertical Rack Space For an Amp?
Reply #10 -
08/18/20 at 10:15:07
They can be mounted horizontally or vertically...
Back to top
IP Logged
Hop1per
Verified Member
Posts: 3
Re: How Much Vertical Rack Space For an Amp?
Reply #11 -
08/18/20 at 10:18:21
To provide power to an entire rack of servers and other equipment .
Back to top
IP Logged
Hop1per
Verified Member
Posts: 3
Re: How Much Vertical Rack Space For an Amp?
Reply #12 -
08/18/20 at 10:19:28
Thanks for addressing this topic. I was looking for the information regarding the same
