I just completed a SE84 clone for the Charoit. The Zkit1 has moved to the office. There was a plan to build Tiny Radials for the Zkit office system but, always a but!, after ordering Tang Band's from Parts Express and watching that order being delayed because of supply issues several times I ended up on an option bonanza.

Steve posted TRs were available on the Tiny Radial site. There was a nice little oak pair there that swayed me to push the buy button thinking of cancelling my PE order. Before that cancelation took place and in a matter of hours a Zrock2 with copper signal caps became available. A PM was sent and a deal struck in short order. Now this put me well over my budget this year on audio purchases with the TR order. I was torn but knew that I would have to place a call to Decware in the morning to cancel.

Last week Parts Express sent another email stating the TRs were delayed again! I was ready to throw in the towel and cancel that order and just use the NEC speakers as monitors for the Zkit. The old little oval speakers sound good with the amp so it will do. Then!! PE sent another e-mail with tracking information of a shipment. Must be the TRs!
The drivers arrived Wednesday and plans were ordered on Friday.

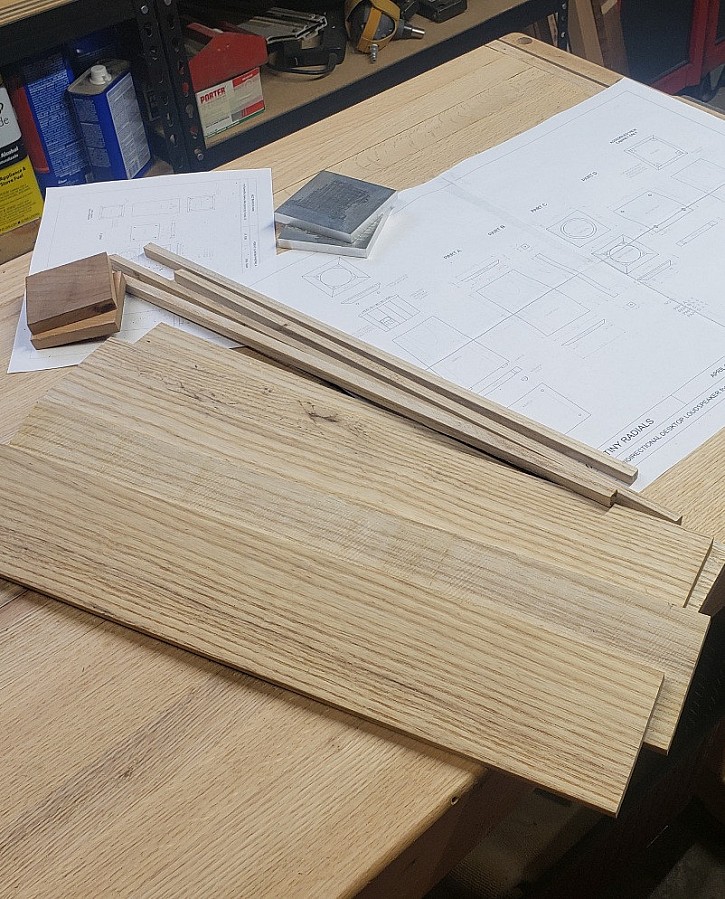

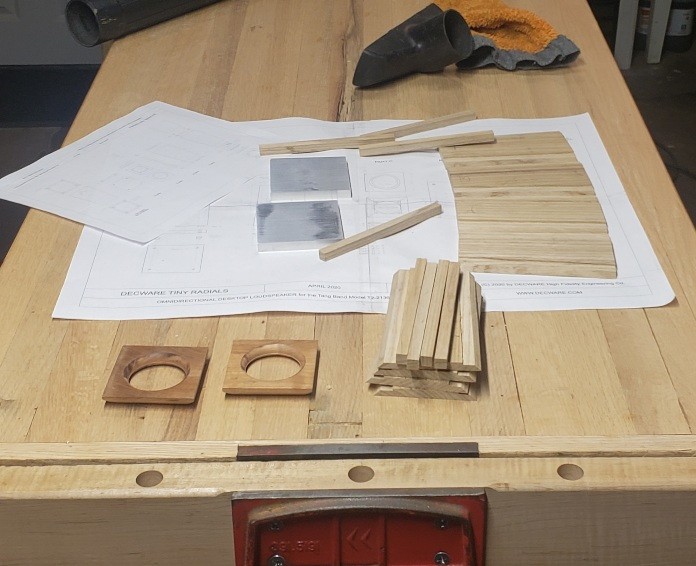

It took me yesterday morning to browse around the shop finding enough material, form a plan, and cut parts. It was lunchtime at this point.


John

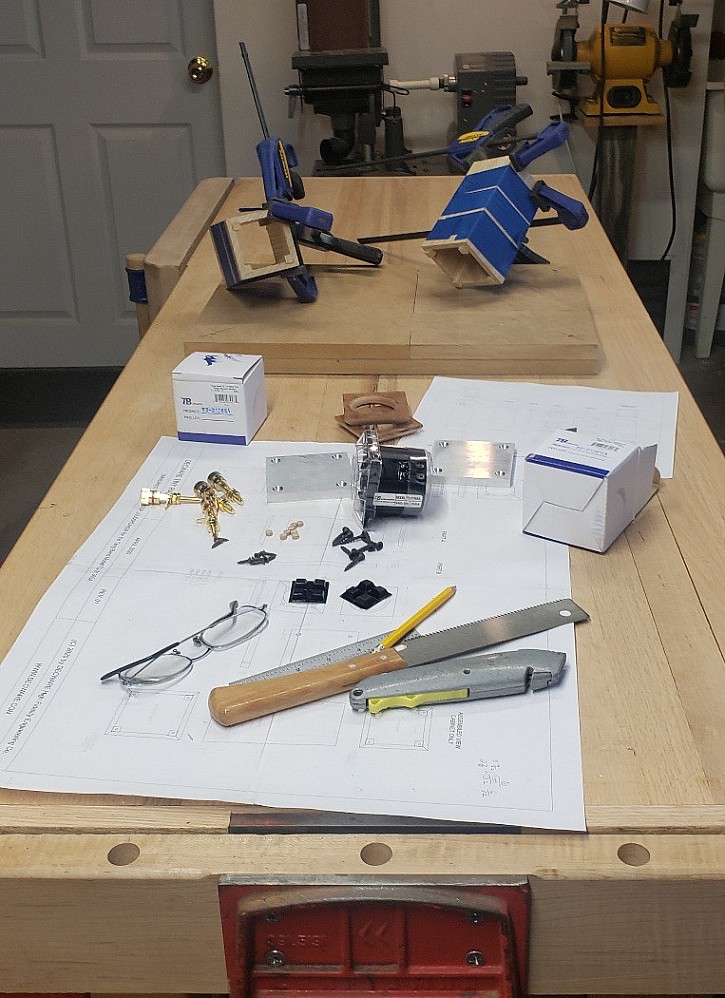

Break time Found all parts needed to complete this project.

John

John

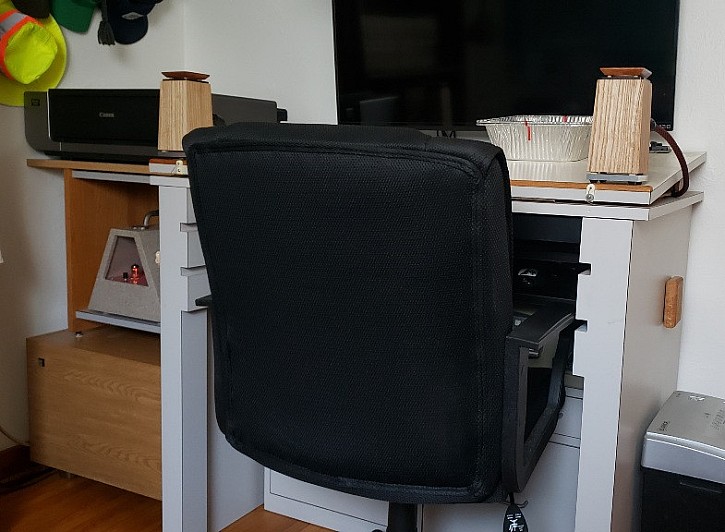

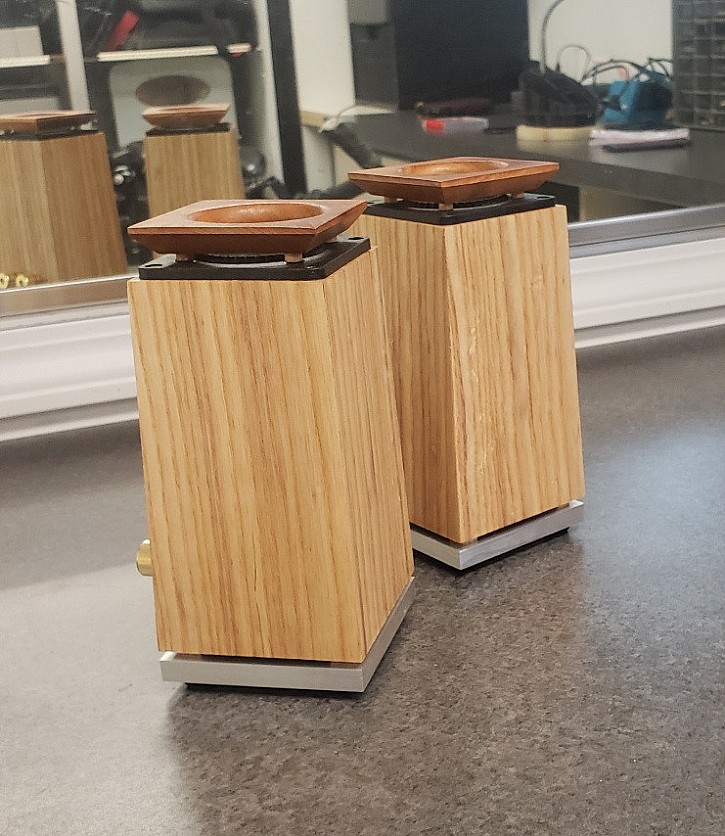

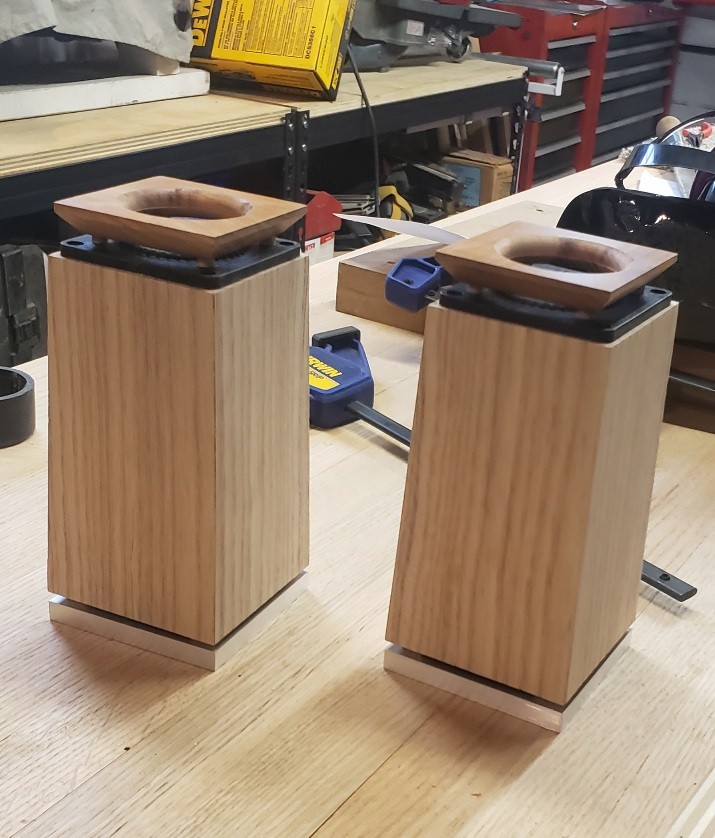

The Tiny Radials have landed. The positioning shown in the pic is the best so far for the TRs. I remember Steve said in the development tread that arms length was the best for the TRs. He is absolutely correct. At arms lenght the TRs take on a lot of the qualities capable of a SE84. Bass shy of course but audio nivara is at hand. Hats off to Steve for creating these little gems!

John

Thanks Lon and Geno for the kind words.

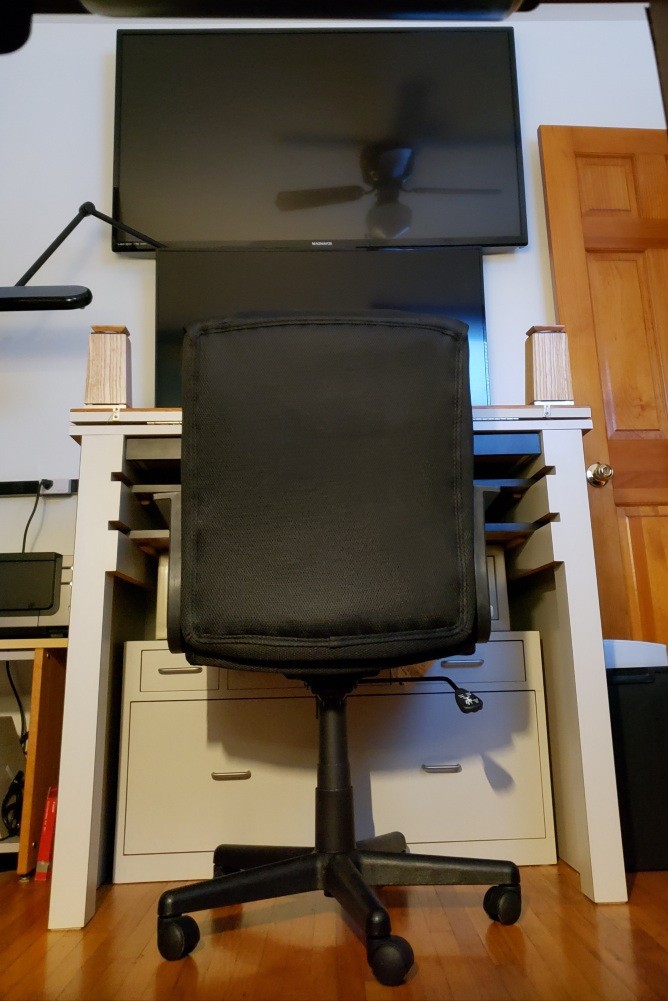

So, I did some room treatment of the office with pillows. The TRs were also raised a bit offsetting the drafting table incline. The sound bouncing from the lcd monitors did not play well with the TangBands and a questionable DAC. Placing the front pads onto the oak curb on the table reduced the sound bouching off the upper monitor. The TRs project an excellent sound and  stage when the body of the speaker is kept at the same plane as the ears. I don't plan on keeping pillows or treat the office but just wanted to play around with my new toy Probably will upgrade the USB DAC...anyone got a good one laying around that needs a good home?

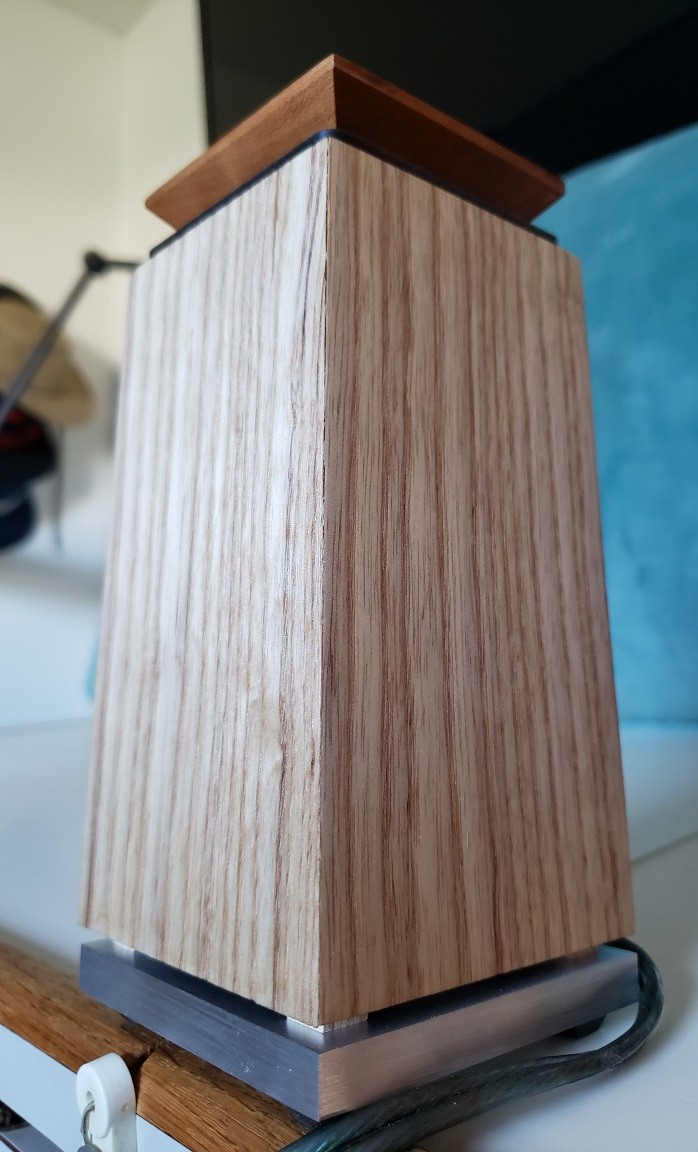

The 45 degree angle cuts on the side panels could have been better. Made a stupid error not to use my eye glasses when setting the table saw by not looking at the gauge and using just the 45 degree stop. Still after a few more sandings and finish coats the corners will mend nicely. Trick is not to tack clean the corners after sanding and apply another sealer coat. Repeat until it looks good.

John

Wow! Very nice, John. Beautiful work!

Turning a bit green over here.

Your story sounds a bit like some of mine, but you seemed to get this done in "BLAST" time. I applaud your results.

Now I want to build those, too!

Quote:

My attitude and mind-set on this one was quick n dirty when walking into the shop with the plans Saturday morning.

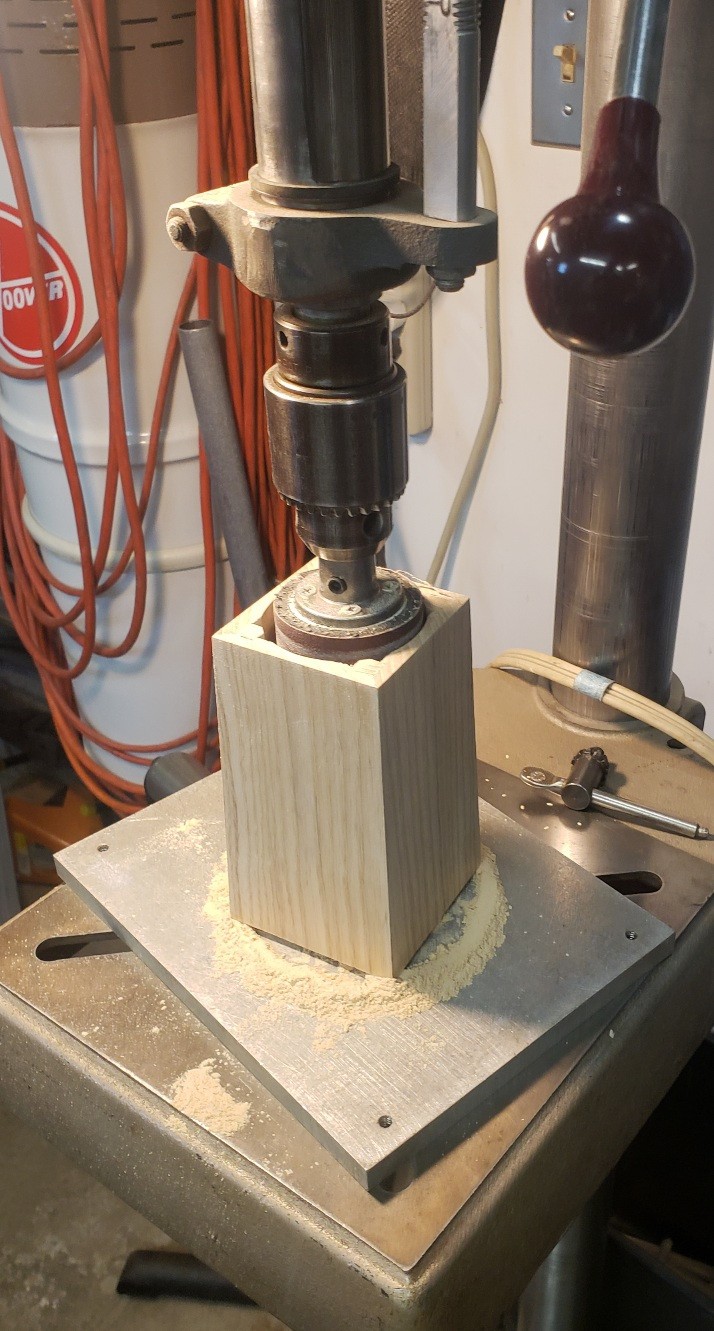

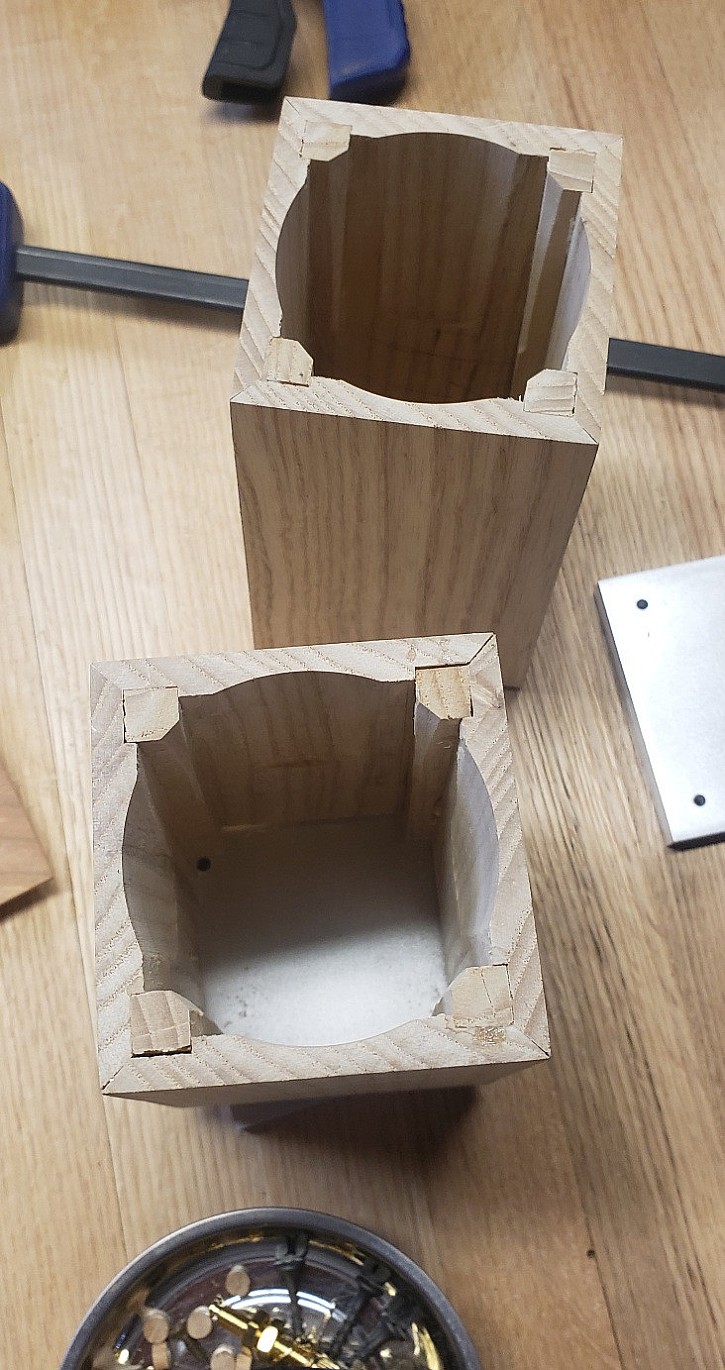

Spotting two left over 7/8" wild grain oak pieces from desktop projects for my daughter and son-in-law, I could not find anymore after a thorough search. There is plenty of red oak in the shop but this particular grain seemed right for the TRs. The pieces were not enough to make the sides without resawing. Something that was not going to happen as a quick n dirty build. All that would be required is compounded cuts with the table saw after the side panels lenght was cut. No staves or routing would be required. There are plenty of ways to get the TBs fitted into a thick sided TR available in the shop. The audio gods had their way this time when the bandsaw was pulled to resaw and staves cut!
Another key word would be flexiblabilty which can be hard to be at times. Seems more time was being wasted by looking for a shortcut to bypass the way it was intended to be constructed then the actual time to do it as drawn.

John

Edit TLs should be TRs

The latest enhancement of the TLs in the office system using a BSR passive sub. A blast from the past that needs a bit more tweaking. DAK use to sell these in the nineties. Not sure if that company is around anymore. The sub is and works fine. The bypass to the TLs is set at 120hz. It really needs to be lower to eliminate attention it gains. It also seems to need broken in again after unknown idle time because after 5 hours play the bass started to refine.

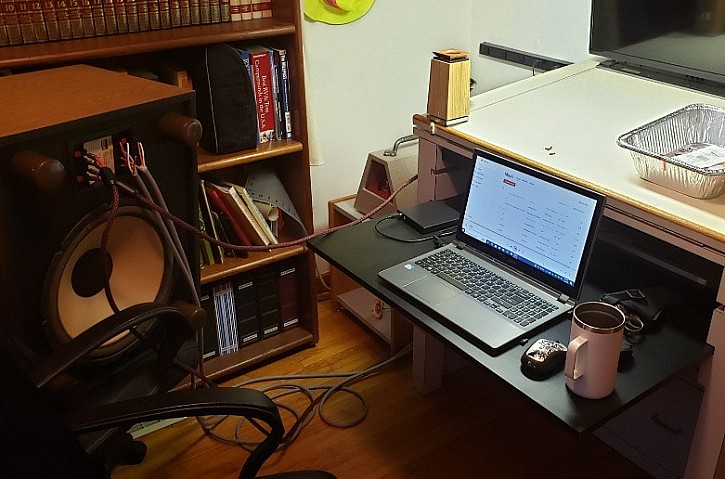

How it sits now after yesterday's install.

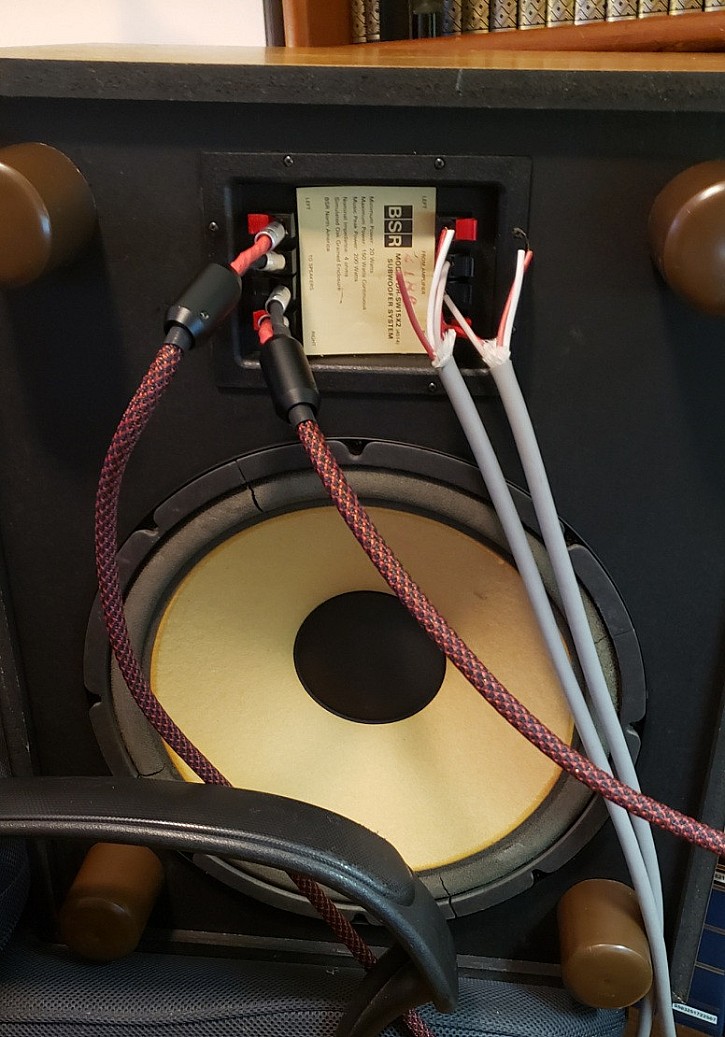

Testing to make sure it worked before the hard work of getting back into the corner.




I also recieved another vintage piece yesterday after the sub install. It is a Carver C9 in excellent working and physical condition that plays well in the Charoit system. Will write something about it shorty. I need to take advantage of the wonderful weather and finish another project outside.
