What is Steve building now? (Read 4069 times)
Steve Deckert
Administrator
If the 1st watt
sucks why continue?
Posts: 6301
What is Steve building now?
12/30/23 at 05:41:02

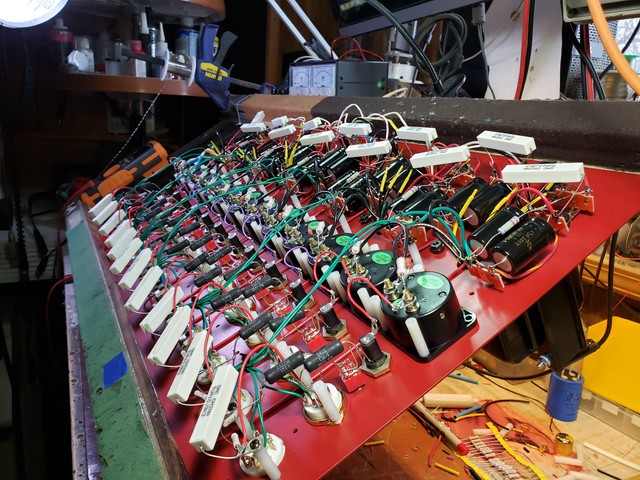

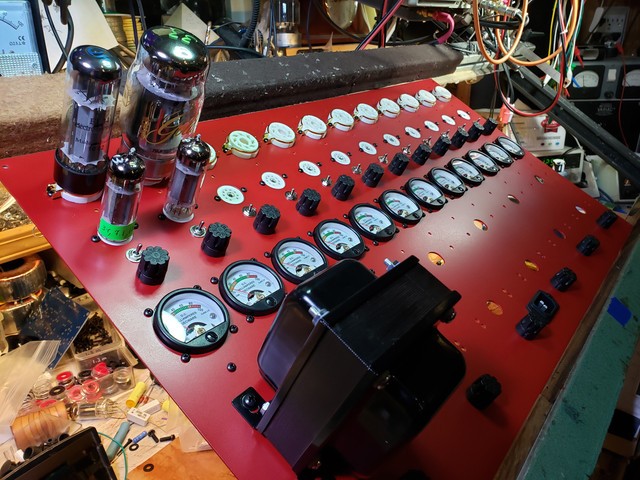

See if you can guess before I finish it : )
click to enlarge
Back to top
IP Logged
Yakatak
Verified Member
Posts: 43
Re: What is Steve building now?
Reply #1 -
12/30/23 at 05:57:28
Tube Tester, or more likely a tube matcher.
Back to top
IP Logged
Paul2
Senior Member
Second Hand Rose
Posts: 83
Re: What is Steve building now?
Reply #2 -
12/30/23 at 06:55:52
Lon is going to have to rearrange everything to utilize that !
Back to top
Roon Nucleus, Eversolo A6 ME, ZRock, CSP, SE84 UFO, TubeTots
Small treated room
IP Logged
Sean
Seasoned Member
Posts: 332
Re: What is Steve building now?
Reply #3 -
12/30/23 at 07:35:11
It’s red, where’s Donnie???
I’m going way out on a limb here, home theater?
Back to top
Technics 1210G, Phasemation PP-500, Cinemag 1254 SUT, ZP3, CSP2+, UFO25, Tekton Pendragon
Schiit Bifrost, Mac Mini, Roon
IP Logged
Kamran
Seasoned Member
Posts: 1042
Re: What is Steve building now?
Reply #4 -
12/30/23 at 08:06:37
Back to top
Innuos Pulse Streaming Transport and Phoenix Net Switch-Holo Audio Spring 3 KTE DAC-Ic0n4 Autoformer Passive Pre-Sarah 300B SET Amp-ZBIT-GIK Room Treatment-Caintuck Audio Magnum Baffles—Li Audio Fast 15 Drivers-P.I. Audio MajikBuss & Puritan PSM 156 Conditioners
IP Logged
Lon
Seasoned Member
"Love without
guts is
worthless!"
Philip K. Dick
Posts: 24285
Re: What is Steve building now?
Reply #5 -
12/30/23 at 10:36:24
Looks interesting. Nice chassis finish.
Back to top
HR-1,ZBIT,ZROCK2,SEWE300B,CSP3-25mod; Rega RP3 all GrooveTracer mods;PSAudio:PST+DSD, DAC Mk II, P15,NPC,PowerBases,AC-12 pwr cbls, Reference spkrcbls; Mapleshade SamsonV3; VooDoo:Cremona+Amati interconnects, IsoPods; headphones: Sennheiser HD800S,ZMF Ori,Oppo PM1
IP Logged
Paul2
Senior Member
Second Hand Rose
Posts: 83
Re: What is Steve building now?
Reply #6 -
12/30/23 at 12:55:02
Maybe, a control board to allow switching between speakers ?
A whole bunch of speakers.
Back to top
Roon Nucleus, Eversolo A6 ME, ZRock, CSP, SE84 UFO, TubeTots
Small treated room
IP Logged
GroovySauce
Seasoned Member
Posts: 864
Re: What is Steve building now?
Reply #7 -
12/30/23 at 13:17:01
Looks like a nice heater to me. Much prettier than the oil filled radiators.
Back to top
Maximus NEO TT|ViV Rigid Float TA | Phasemation PP-200 or Hana ML | Sutherland Little Loco MK2 | Innuos ZENith MK3 | LampizatOr GA TRP | EMIA Remote Autoformer | STL "Super Tube Rectifier" STR-1002 | SRA Cables | PAP Quintet 15 1.6 Voxativ |Torus AVR15
IP Logged
CAJames
Seasoned Member
"I've run every
red light on memory
lane."
Posts: 2020
Re: What is Steve building now?
Reply #8 -
12/30/23 at 13:58:48
I guess I should get on the waiting list now…
Back to top
[FOOBAR2000 | Jay's CDT2 MRK3] -> Denafrips Terminator 2 + Gaia
Sumiko Pearwood -> Mapleknoll Athena -> Luxman SUT -> Maple-tree Phono 3E
STR-1002 -> Woo WA22 -> 2x UFO25s, balanced monos
Omega SAM , Hifiman Arya, Audeze LCD-XC
IP Logged
MikeinMontana
Seasoned Member
Posts: 251
Re: What is Steve building now?
Reply #9 -
12/30/23 at 15:21:53
I knew it! Gone completely, and totally mad~ [smiley=icqlite20.png]
Back to top
IP Logged
MikeinMontana
Seasoned Member
Posts: 251
Re: What is Steve building now?
Reply #10 -
12/30/23 at 15:25:13
yup
Back to top
IP Logged
MikeinMontana
Seasoned Member
Posts: 251
Re: What is Steve building now?
Reply #11 -
12/30/23 at 15:27:50
A time machine? Close?
Back to top
IP Logged
Bluemage
Seasoned Member
Posts: 200
Re: What is Steve building now?
Reply #12 -
12/30/23 at 19:19:52
You guys obviously didn’t zoom in.
https://imgur.com/gallery/xC5oyeb
Back to top
IP Logged
Lon
Seasoned Member
"Love without
guts is
worthless!"
Philip K. Dick
Posts: 24285
Re: What is Steve building now?
Reply #13 -
12/30/23 at 19:40:38
I really must be more careful with my DNA and RNA.
Back to top
HR-1,ZBIT,ZROCK2,SEWE300B,CSP3-25mod; Rega RP3 all GrooveTracer mods;PSAudio:PST+DSD, DAC Mk II, P15,NPC,PowerBases,AC-12 pwr cbls, Reference spkrcbls; Mapleshade SamsonV3; VooDoo:Cremona+Amati interconnects, IsoPods; headphones: Sennheiser HD800S,ZMF Ori,Oppo PM1
IP Logged
EdwardT
Seasoned Member
Posts: 366
Re: What is Steve building now?
Reply #14 -
12/30/23 at 20:20:55
6 power transformers but only one power inlet makes it look like a test bed to match six sets of input tubes at a time.
Back to top
IP Logged
ScottNC
Seasoned Member
Posts: 336
Re: What is Steve building now?
Reply #15 -
12/30/23 at 20:24:43
Tube Burner
Back to top
TORII MKIV-25th,ZBIT,ZROCK2-25th,ZTPRE-25th,ZLC,DNA2's, REL S/3 SHO
MyTek Brooklyn DAC+,Sonore ultraRendu LinearPS,sonicTransport APi7 4TB
Woo WA6, Sennheiser HD660s
RoomTreatments,LineFeed,DHC1’s,DSR’s,ZENST,TriodeWireLabs,TimberNation Maple Plats
IP Logged
pursuitofnow
Seasoned Member
Posts: 449
Re: What is Steve building now?
Reply #16 -
12/30/23 at 20:51:28
Efficient quality control to test parts (tubes, transformers, etc)?
Back to top
VPI Classic Signature | Koetsu Urushi Black | Bob's Sky 20 | ZP3 | Swiss Digital Fuse Box
DirectStream DAC (APS nickel transformers, Vocm mod)
ZTPRE | ZBIT | ZROCK2 | SE84UFO3
Omega Super 3 HO XRS | Deep 8
Zenwave D4 | PCR-11 | PI Audio Uberbuss
---
ZR 3
IP Logged
Donnie
Seasoned Member
Why does it hurt
when I pee?
Posts: 2246
Re: What is Steve building now?
Reply #17 -
12/30/23 at 21:19:57
Fuel injection for his Monty Carlo.
Not one to use a Holly, he decided to DIY it himself.
Or a new surround system. One of the two.
Back to top
Owner of the infamous RED TORII and Dan the Redheaded Amp
IP Logged
Steve Deckert
Administrator
If the 1st watt
sucks why continue?
Posts: 6301
Re: What is Steve building now?
Reply #18 -
01/09/24 at 23:23:48
Yes, I plan to have it in the trunk. If I want to go faster I just change the tubes.
Back to top
IP Logged
Steve Deckert
Administrator
If the 1st watt
sucks why continue?
Posts: 6301
Re: What is Steve building now?
Reply #19 -
01/10/24 at 02:10:07
It is a tube tester that mimics the actual operating points of the Decware amplifiers. Consider this... the simplest of tube testers only have about 200 volts, connect the grid to the cathode and run AC on the plate so that the tube becomes a diode. It really only tells you if the tube works or not but nothing about how well or in what conditions and certainly not what it might sound like. Sadly it takes a purpose built by audiophiles tube tester to actually test tubes in a meaningful way to audiophiles unless you can live with doing one at a time.
Our HickOK 539B doesn't have these issues but it can only test one tube at a time. We have 2500 orders on our current build sheet. That's around 8000 output tubes alone.
This tester was designed to hold the cathode above ground like the Decware amplifiers and have the same DC plate voltages so that we can weed out bad tubes that otherwise would show up two or three weeks into the game after the customer gets the amp.
The other problem with tube testers that the industry is using that retails tubes, is that they are not regulated so not only do wall voltages that fluctuate change the readings, but having one tube vs. two tubes or four tubes plugged in, all change the readings. It insures that there is really no way any "matched" tubes that you purchase from a retailer actually match at the voltages and conditions your tube amp presents to them.
So this one maintains a stable reading no matter if you have one tube or all 24 tubes installed. The readings don't change as you remove and insert tubes.
This baby duplicates the conditions for the output tubes of all of our amplifiers and allows us to precision match them with confidence and in a timely manner in a way that can normally only happen in the actual amplifier itself..
Back to top
IP Logged
Yakatak
Verified Member
Posts: 43
Re: What is Steve building now?
Reply #20 -
01/10/24 at 23:29:39
Ding...Ding...Ding
Back to top
IP Logged
Steve Deckert
Administrator
If the 1st watt
sucks why continue?
Posts: 6301
Re: What is Steve building now?
Reply #21 -
01/12/24 at 02:09:01

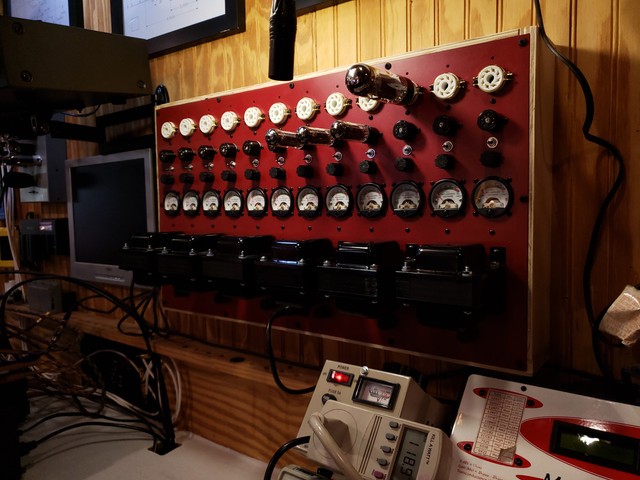

All done : )
Back to top
IP Logged
Sean
Seasoned Member
Posts: 332
Re: What is Steve building now?
Reply #22 -
01/12/24 at 02:18:01
That’s awesome, I love seeing engineering solve a problem. Only question now is who gets to sit there and roll 8000 tubes! I’ll admit I never even considered how many tubes it takes to keep things moving along, 8000 is an impressive number. And those just the output tubes!
Back to top
Technics 1210G, Phasemation PP-500, Cinemag 1254 SUT, ZP3, CSP2+, UFO25, Tekton Pendragon
Schiit Bifrost, Mac Mini, Roon
IP Logged
Steve Deckert
Administrator
If the 1st watt
sucks why continue?
Posts: 6301
Re: What is Steve building now?
Reply #23 -
01/13/24 at 02:35:32

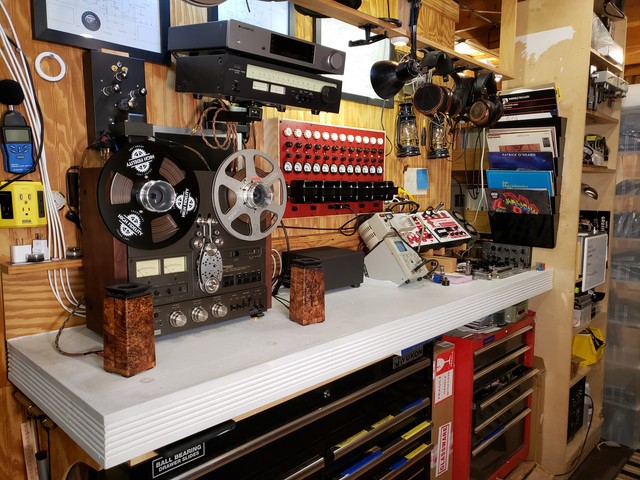

click to enlarge
The entire tube testing bench. We can test any type of tube ten ways from Sunday on this bench, including listening to them and that includes rectifiers. We use ZMF and LCD headphones and Tiny Radials with a sub. Sources are digital and analogue. Noise and microphonics testing down to -90dB. Actual amplifier voltages used in all testing. A lot of tubes don't make the grade. The ones that do go on to be tested in the actual amplifiers with audio signals across the full bandwidth with complete distortion analysis and harmonics matching. Despite all this data collection -- the process weeds out a few more than normal bad tubes but has no effect on the tube and even with 24 hours of burn-in a tube can have issues that take days or weeks to show up. Anyway, this is how an audiophile tests tubes for audiophiles.
Back to top
IP Logged
Tony
Seasoned Member
"Life without
..music is
inconceivable"
A.Einsteln
Posts: 672
Re: What is Steve building now?
Reply #24 -
01/13/24 at 03:06:48
Steve,
What happens to the tubes that, for one reason or another, don't make the cut? Where do they go?
Back to top
SE84UFO25 | Ic0n4 Passive Preamp | ZBIT | Sonore opticalRendu | Denafrips Pontus II | Denafrips Gaia | Decware I/Cs | Decware Pwr Cbls | ZWIRE Speaker Cbls | Omega SAHOM & KEF KC62 | Furman Cond l GIK Room Trmt
IP Logged
JBzen
Seasoned Member
Posts: 1397
Re: What is Steve building now?
Reply #25 -
01/13/24 at 12:44:22
I see the vinyl. Where is the turntable? Hat off to you Steve by adding a source categorie for tubes!
What you using for a sub?
John
Back to top
AMC CD8b>XO3>Cambridge CXN2>ZDAC>ZBOX>braided silver/occ> Zrock2>CSP2+>SE84 milflex copper 25th>9AWG silver/copper braid>lii Crystal 10 in Huijgen cabinets. Ortofon 2M Black>JVC QL-F4/Otari MX5050B2>ZP3. Isolation. AC filtering. Room treatment.
IP Logged
Dominick
Seasoned Member
Still like that old
time Rock and Roll!!
Posts: 1270
Re: What is Steve building now?
Reply #26 -
01/13/24 at 14:31:41
Steve’s purpose built tube tester solidifies the reason why buying tubes from Decware is a great way to explore tube rolling in your amp. You are guaranteed to get the best possible results in sonics with tube matching as opposed to buying from a random eBay seller.
Dom
Back to top
Rasp. Pi 4 [Roon], Schiit Bifrost True Multibit DAC, ZBIT, ZROCK2, My Audio Cables Ultra Silver+, ZSB, CSP2+ 25th, DAG Cables, DHC1, Torii MKIV 25th /2 White Zen SE84C+ 25th mono’s, Rega P2 Turntable, White top ZP3, Velodyne Dual Firing Sub, ERR’s [Bubbinga Wood]
IP Logged
