Now that I just finished spending my afternoon shoveling a foot deep of heavy snow from my 40 ft driveway, and the sidewalk in front of my house, I can actually get on here and reply. My joints are enduring a bit of pain now as a result. At my age, this is not the thing I want to spend my day doing. I will bear through it, as my mind always gets me through the tough spots. I still think that I am 30 years old physically! I think I will relocate back south...LOL This is why they make Crown Royal....and that just may come in handy tonight.
So anyway,
Of course you mean Carver as in Bob, and not Carter as in Jimmy. A little humor, yet they were both buzz words back in the day.Well, maybe JB actually thought Jimmy created the C9? Can't remember much of anything else worthwhile that he did other than the Habitat For Humanity project....but that is another story. I began my military service at the same time Jimmy went out the door. You could not buy a real job back in 1979 and 1980. I had no choice but to enlist. Either that or become homeless. F*** THAT! The military created a path to my future, and I am a better man for it. So thanks Jimmy...rest in peace. Every time that I listen with the C9, I will be thinking of you.
Alright, no more ragging on JB, he has been having a hard time with all of that work he is doing. Get 'r done JB.
The kits includes a core wound with the primary wire and insulation. A manual is included with all the info needed to add magnet wire for custom secondaries.Thanks JB. This won't be necessary since 4krow was generous enough to share information about the C9 upgrades including a good source for the transformer which has a very low price. Since he has strong experience with the C9 circuit, and he knows what works well, I am going to go with his choice and see how it goes. I can always change it later if desired.
Thanks for that info Greg.
I am very pleased that 4krow has joined in here as he is a valuable source of information and help. I hope that he gets more business due to this thread. I also hope that he can influence others just how good this unit is, and how crucial it is in a system.
I did note that someone bought the second of the three C9's on Ebay, the one from NYC. Just wondering if it was a member here?
That last unit is an early model with the rack mount notches like the one mrchipster bought. Seems to still be there for sale.

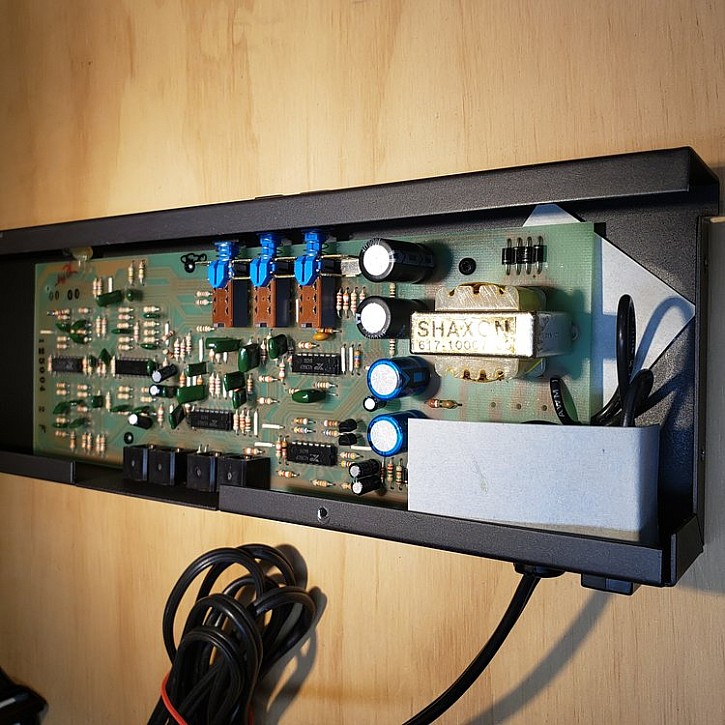

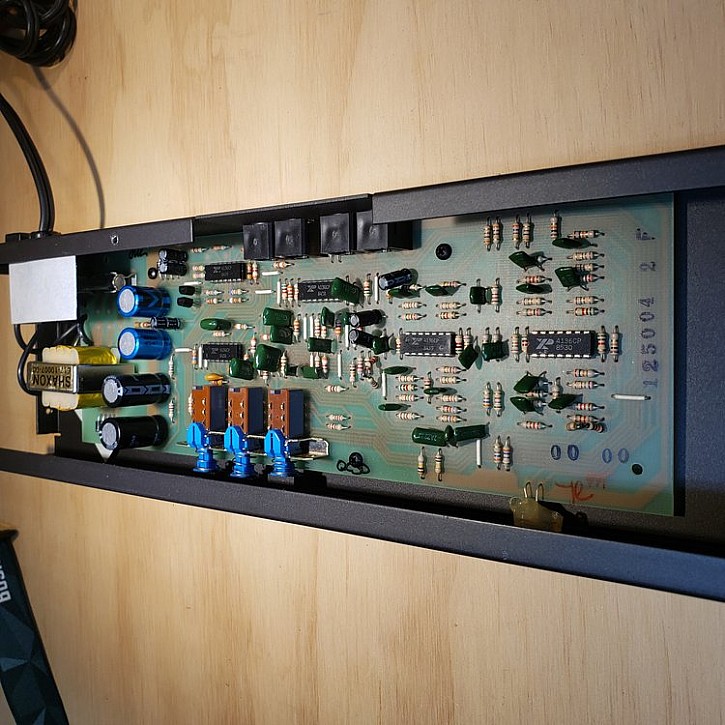

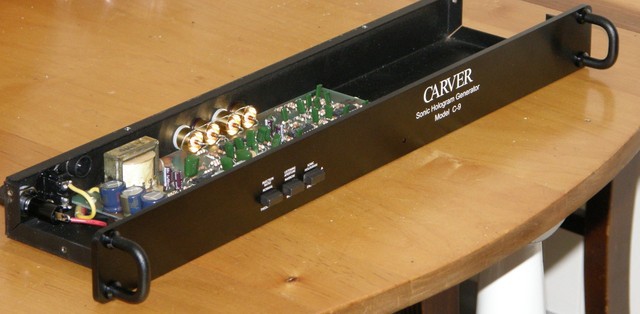

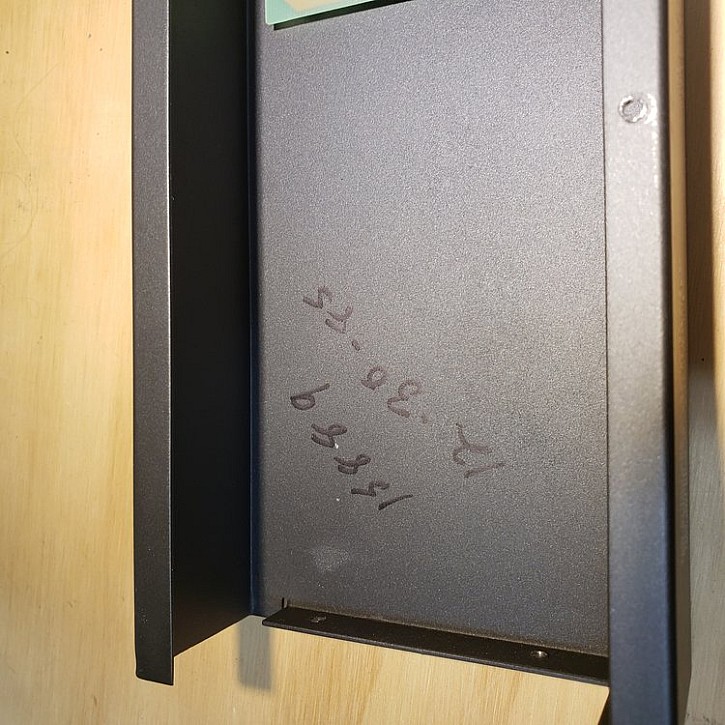

I now have two of the late model units, my current being a '86 model, and the one I just bought, most likely a '87 model due to the much higher serial number. One will always be in the system while the other is undergoing upgrades, and repopulating of the board components. I need to strip down one of these circuit boards anyway to perform some backwards engineering. It will be rebuilt with all new components, much higher quality than original.
I do have a quandary concerning upgrades to the switches.
Greg, perhaps you could shed some light on this. I know that this mod has been done before, and I would like to do the same with my new build.

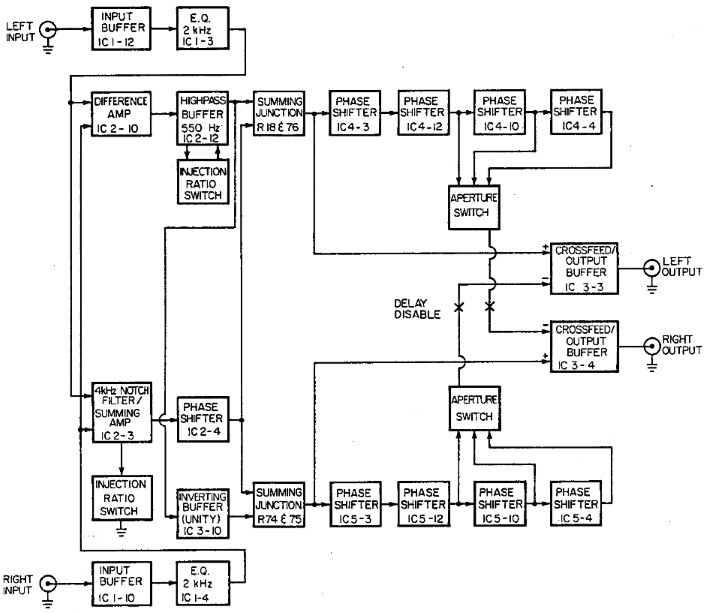

I do not like the limited output of the push switches. It makes so much more sense to have stepped attenuation for precise control for each of the controls (injection ratio and aperture). By tracing the circuits for each mode under the 3 key push switches, I assume that a
DPDT 6 pin (ON_ON) toggle switch would work for basic switch upgrades. Please inform as that being correct based upon your experience.
But, it will take rotary stepped attenuation in order to accomplish the task as I want to engineer it for flexible fine tuning.
What is your take on making this happen? Could you shed some light as to making this work? It would help to know a part that works well for this, and of course, having a diagram as to the wiring for a C9 installation.
If this becomes too complex, I will just remain with a chassis mount push switch, again thinking that a
DPDT (ON_ON) 6 pin toggle switch would work for this. Please inform if this is incorrect.

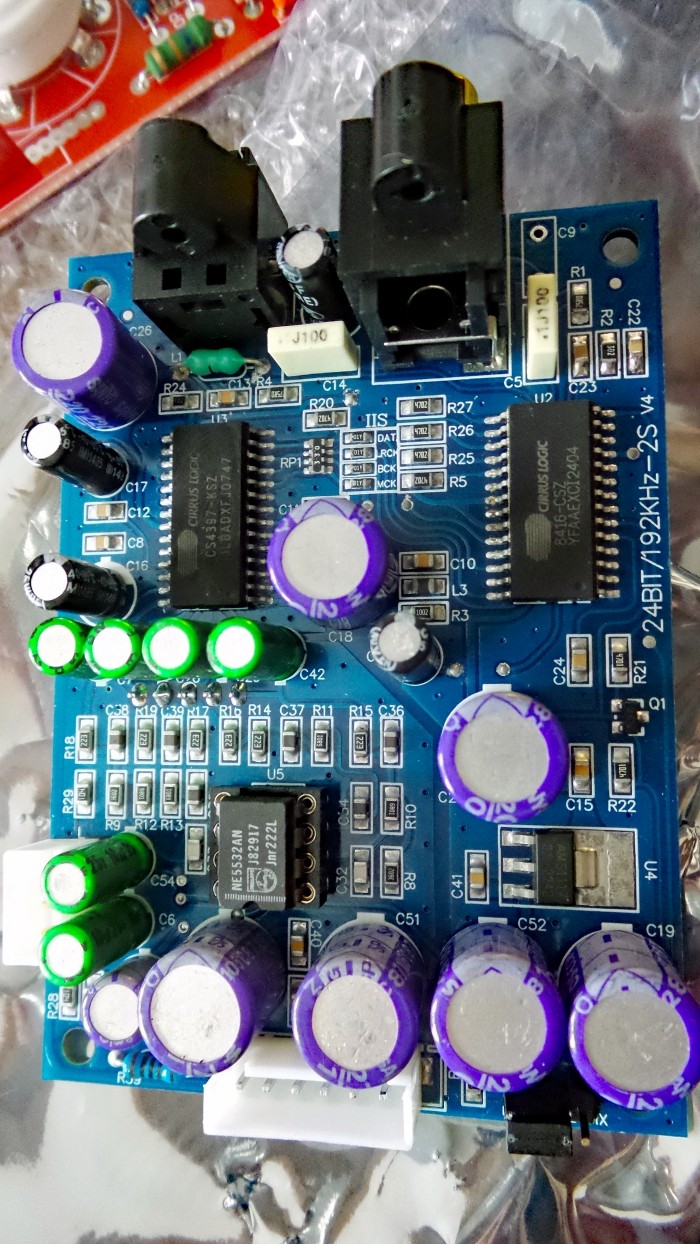

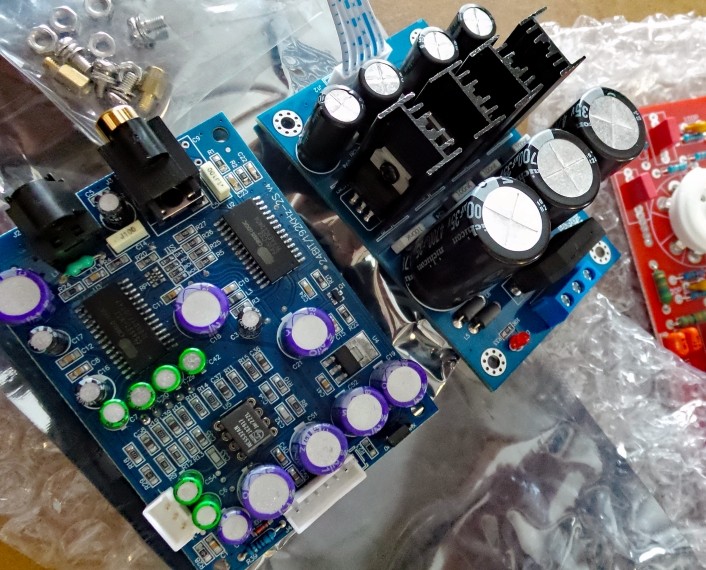

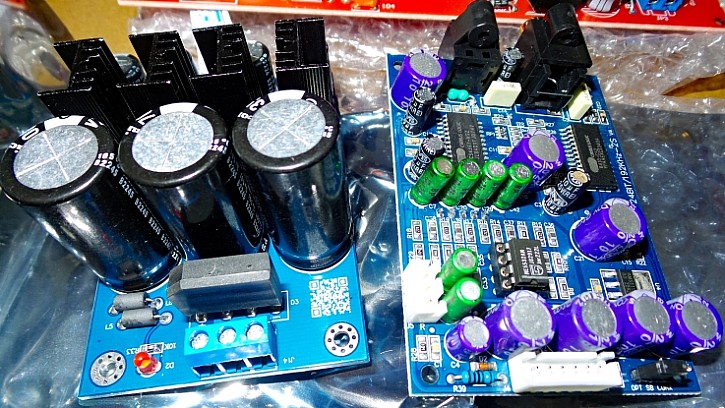

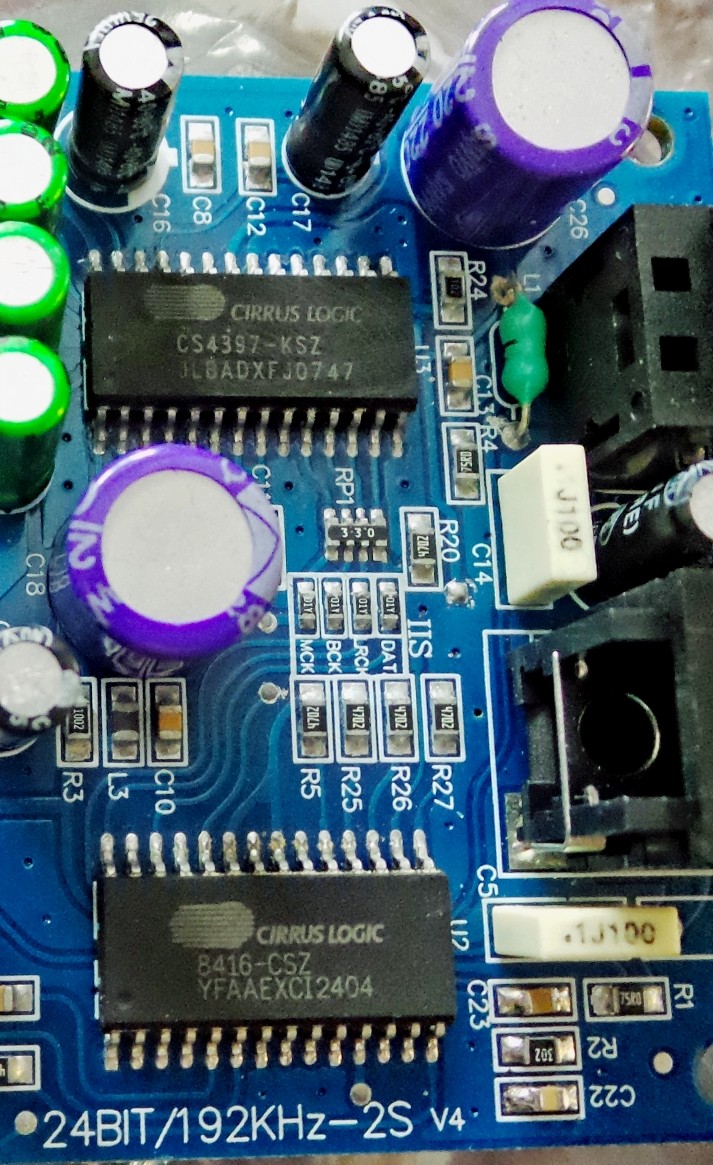

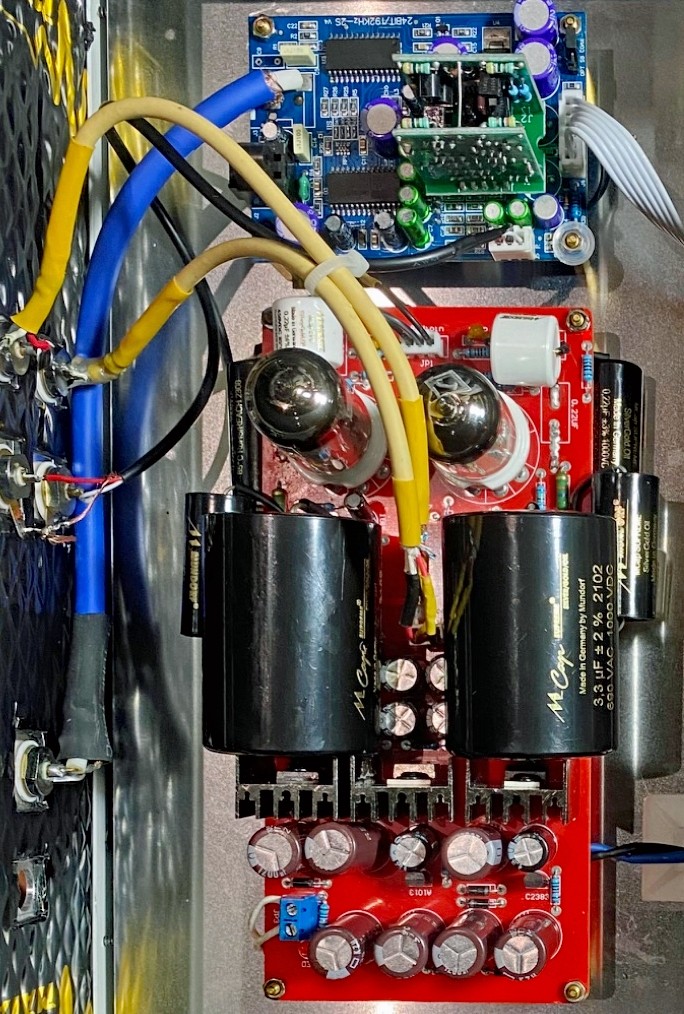

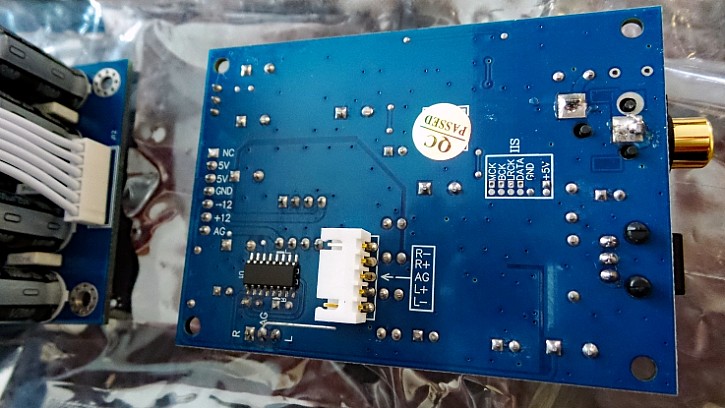

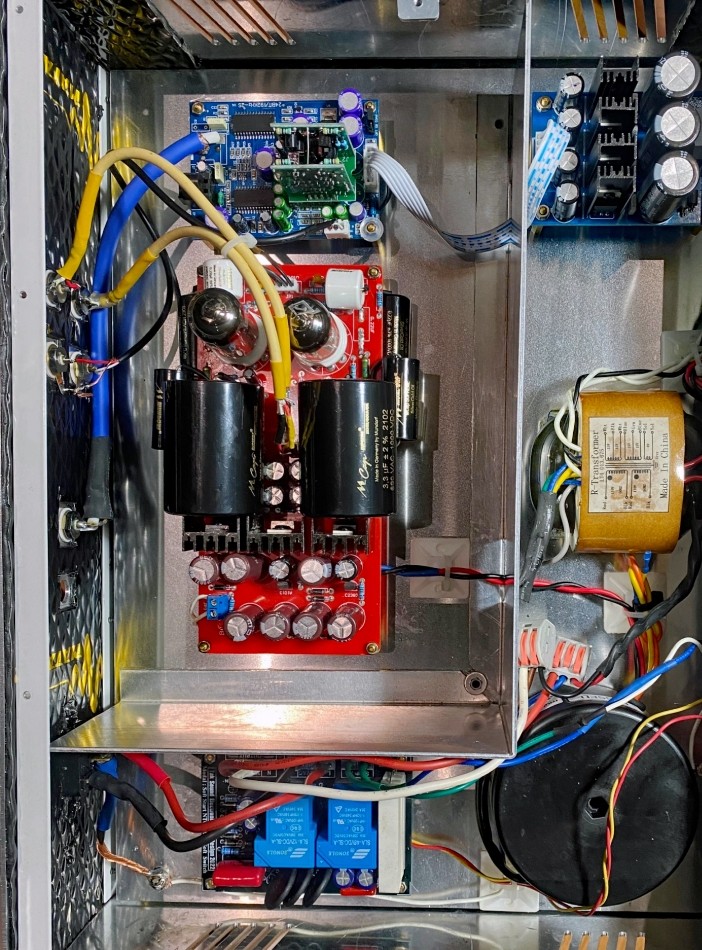

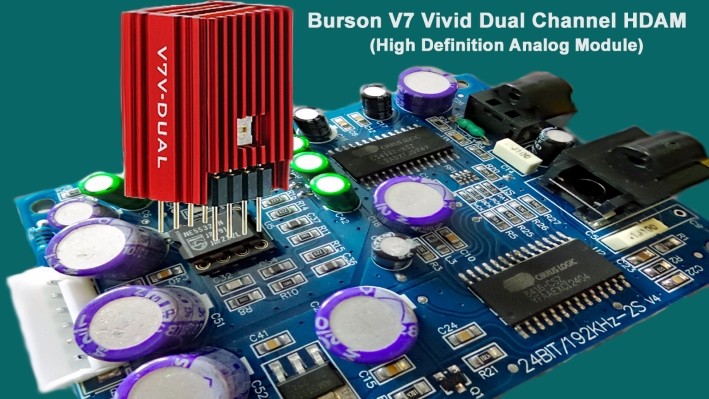

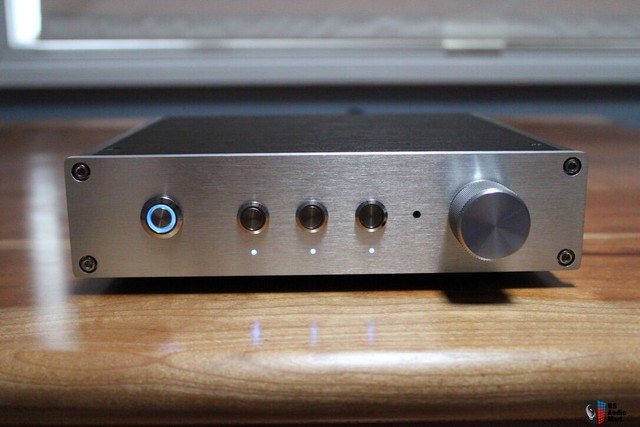

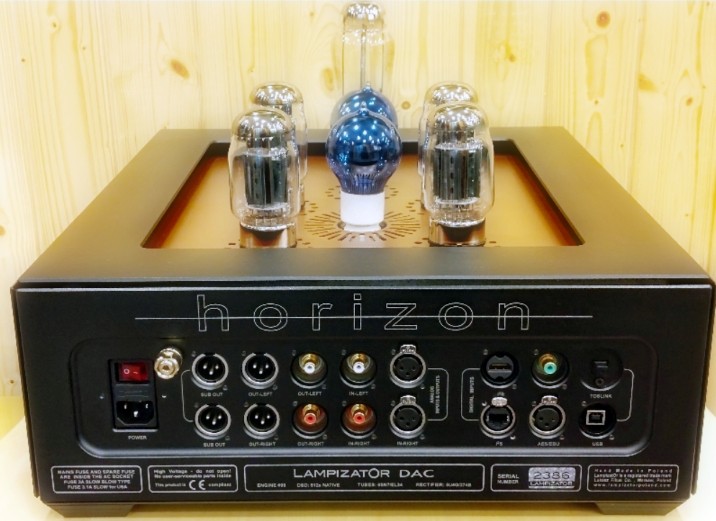

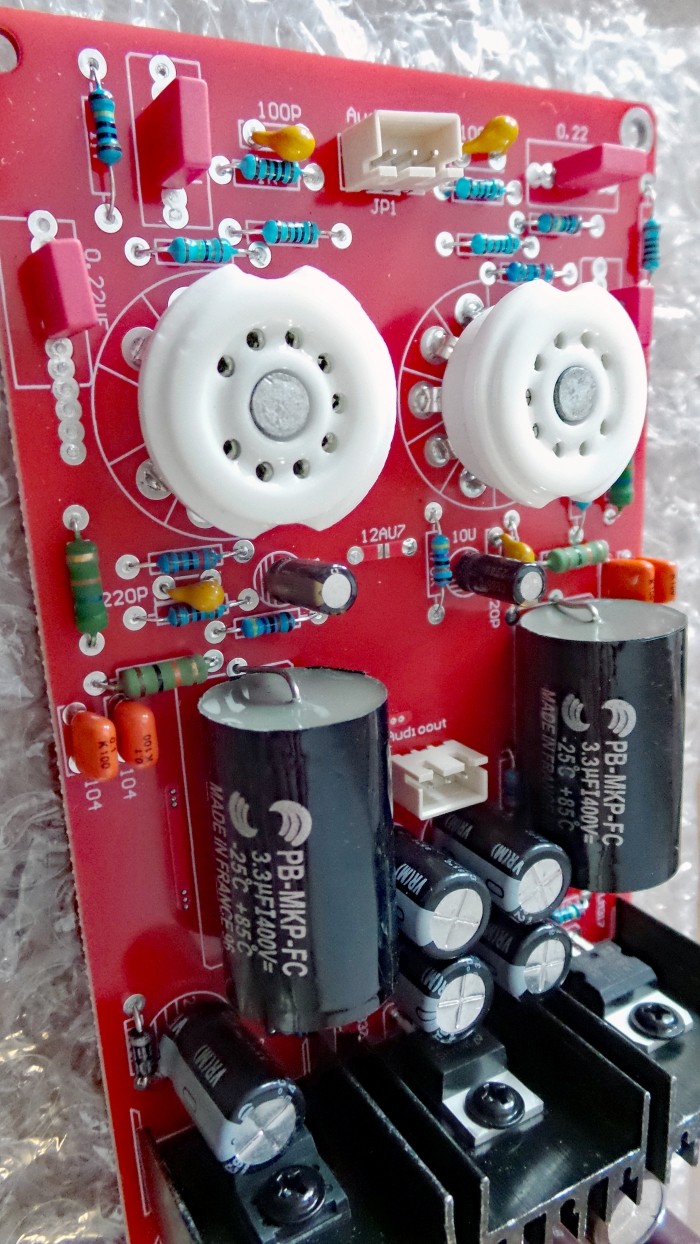

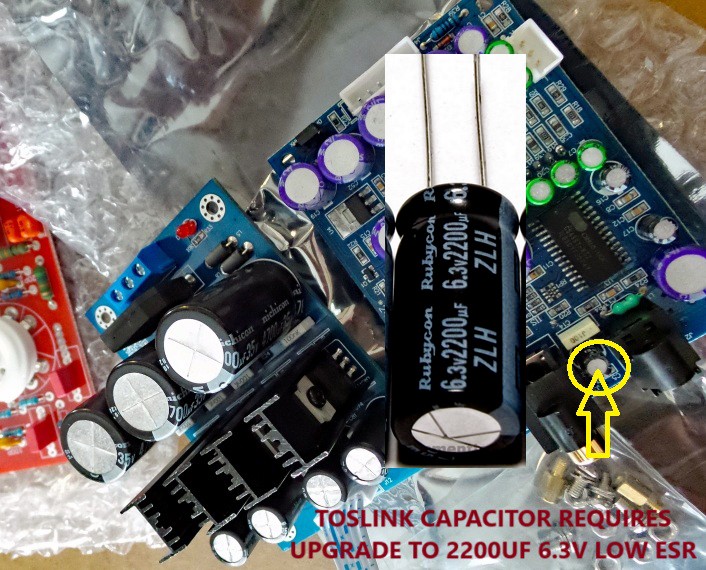

*Note: I am not just rebuilding a current C9. I am building a new design which has a different component layout. This will either be point to point, or built onto a PCB. My plan is to integrate this circuit along with a new DAC circuit inside of the same chassis. The original C9 layout is only for reference.

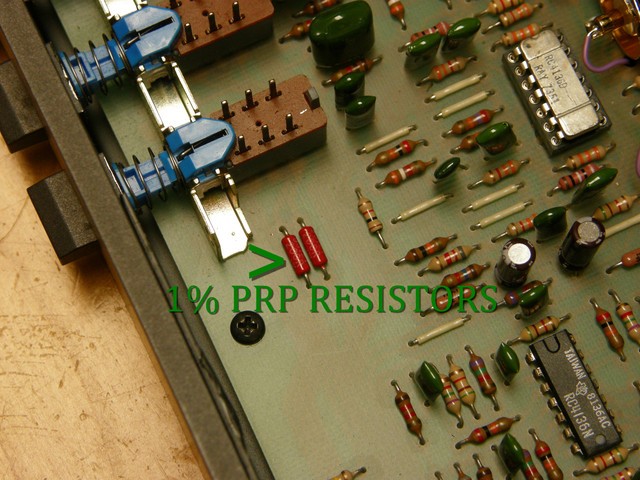

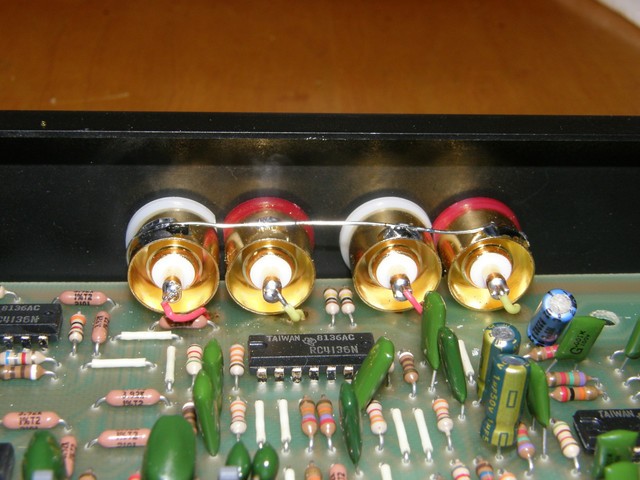

I noticed that you installed two of the resistors with high grade 1 percent metal types. Obviously, you have found this upgrade to be audibly beneficial. By any chance, are these two resistors for
R121 & R122? Those are the ones located near the HOLOGRAM INPUT switch.
What improvement did you hear from this? I am going to use all 1 and 2 percent resistors for my build anyway. I am using mostly Vishay metal film for mine.

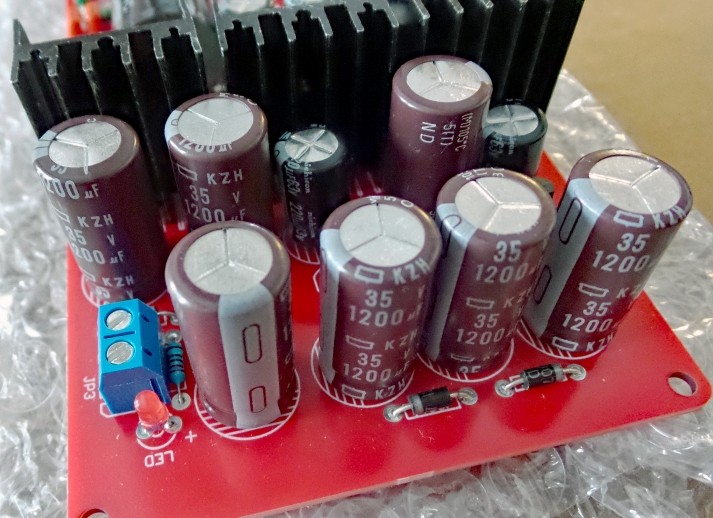

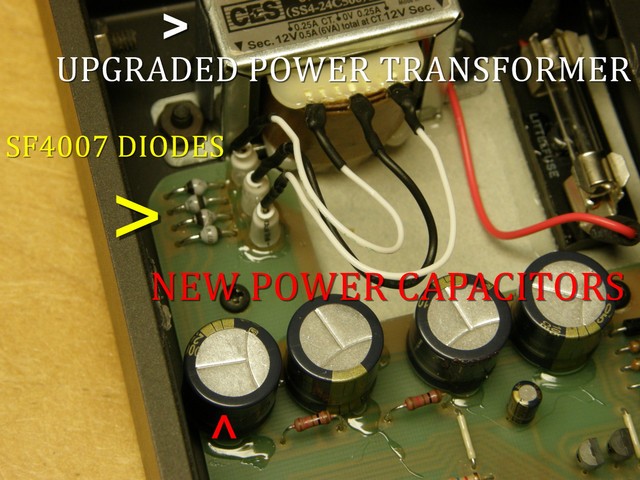

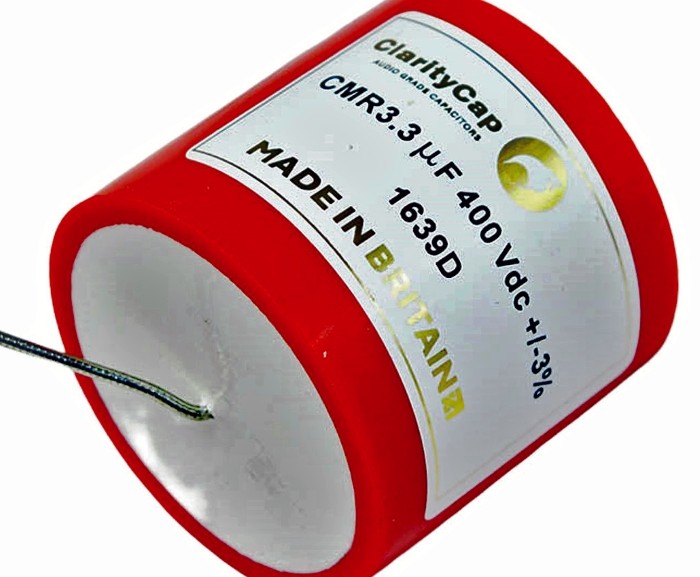

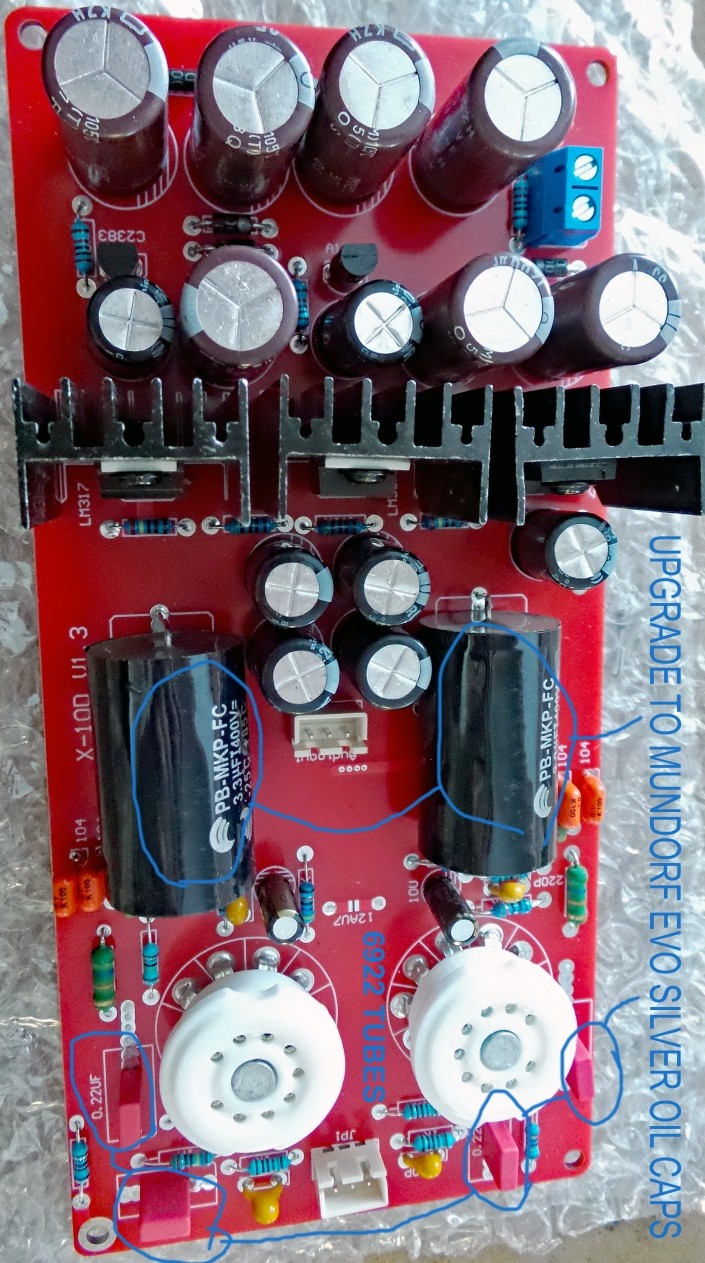

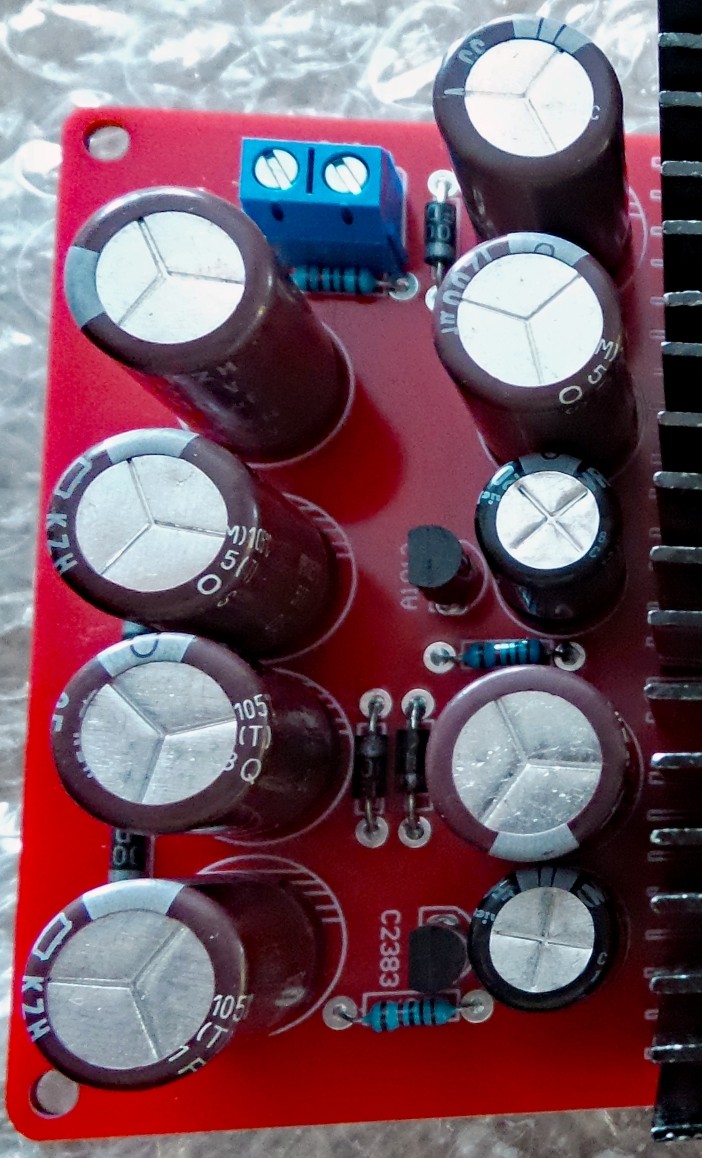

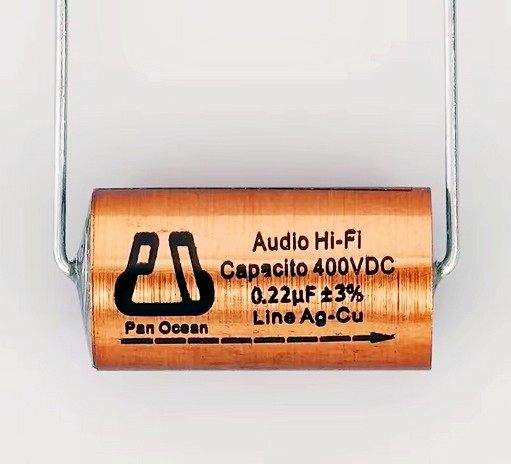

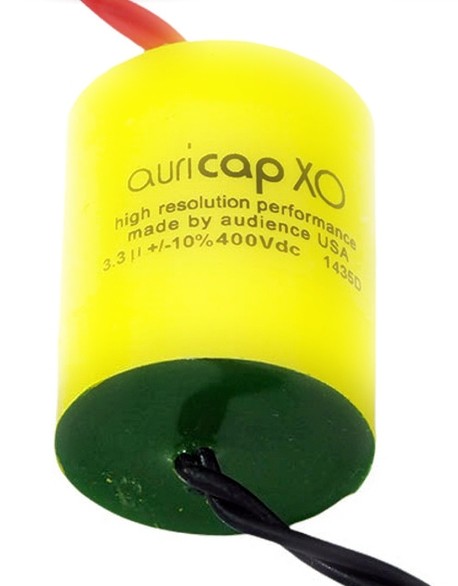

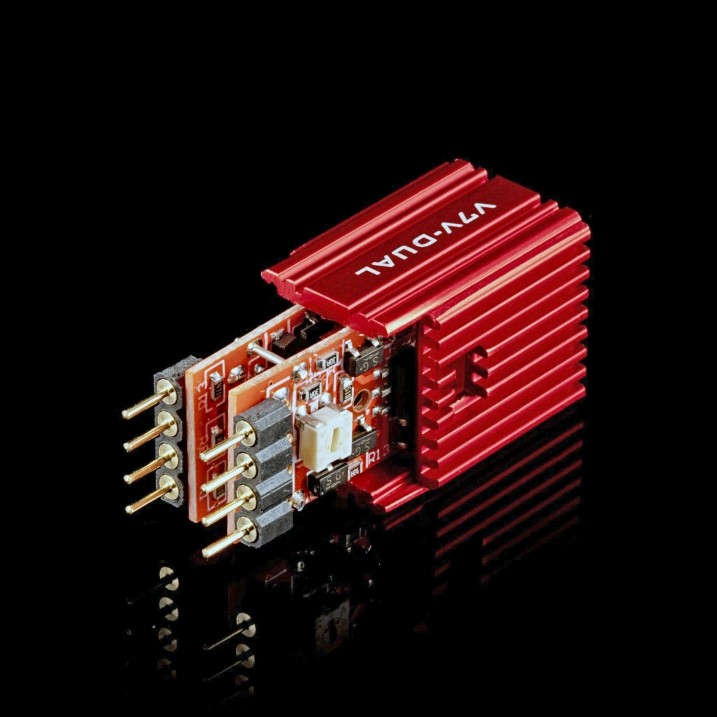

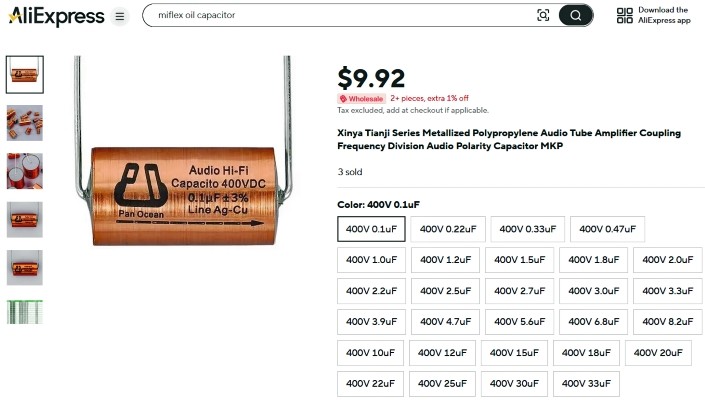

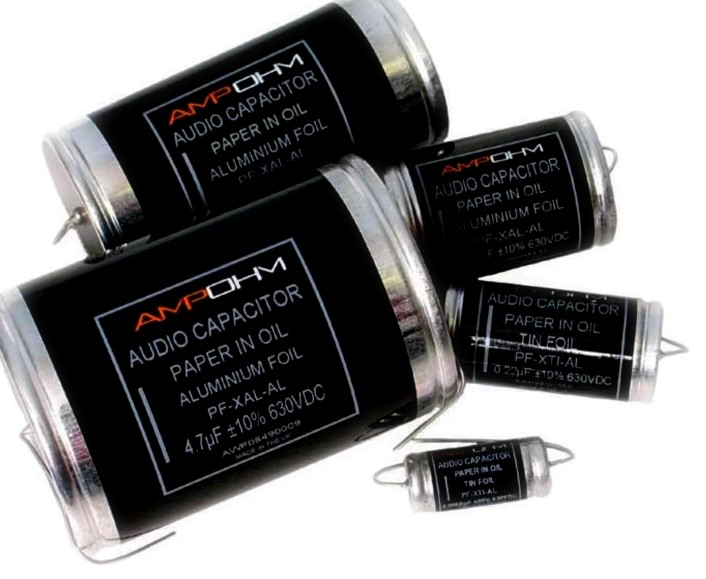

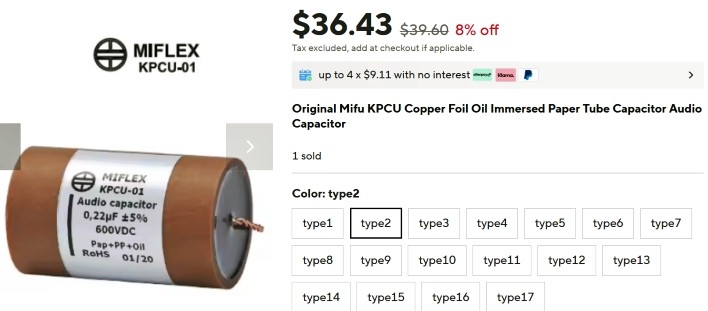

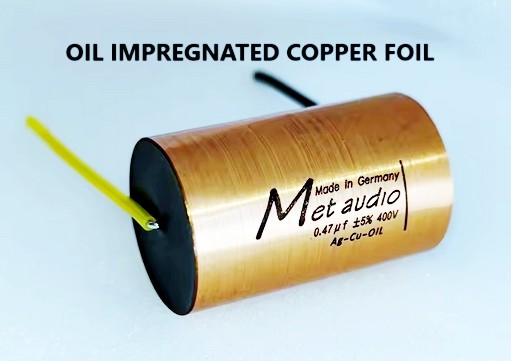

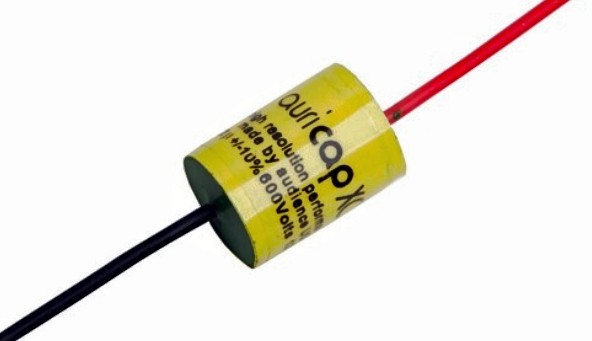

Because OSCON (Sanyo/Panasonic) type electrolytic capacitors have a good reputation for sound quality in DAC circuits, I am thinking about using these in the power supply. Have you tried other capacitance variations with this circuit, and if so, what do you recommend? Your choice of transformer replacement seems to be a viable one, so that seems to be the option to use. The cost of toroid types are very expensive, so have to wonder if they are worth it for this application?
Also, do the Vishay high speed rectifiers actually make a noticeable difference with this circuit over the standard ones used originally? I see that they claim to have less "bleed-back" in the reverse direction, which is something that makes good sense as to the outcome, but these are for very high frequency applications where this type is required. I don't see that being much of a need for this unit, but they are much better than stock, so might as well upgrade with them. They are cheap and readily available at Mouser, so it would be foolish not to use them. Just wondering if this actually makes a noticeable difference audibly.
Anyway, any guidance you can provide me on this would be helpful and much appreciated.

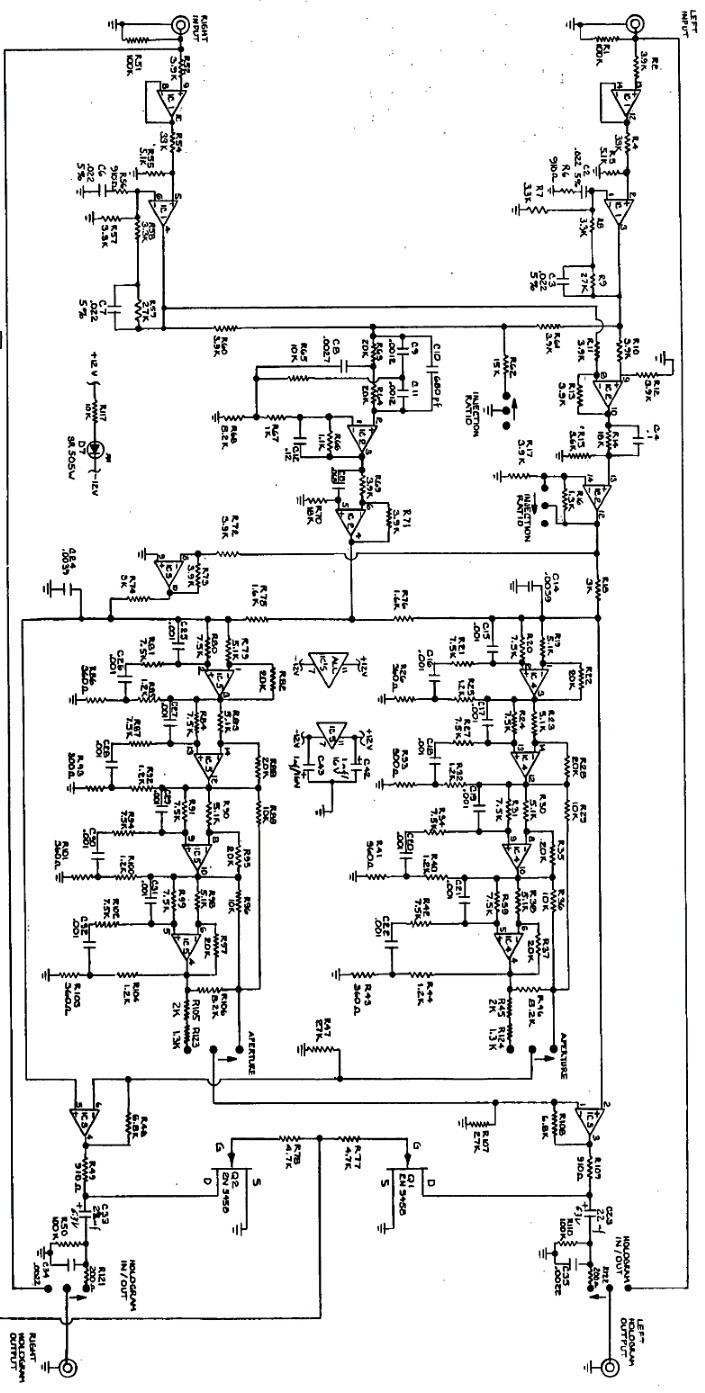

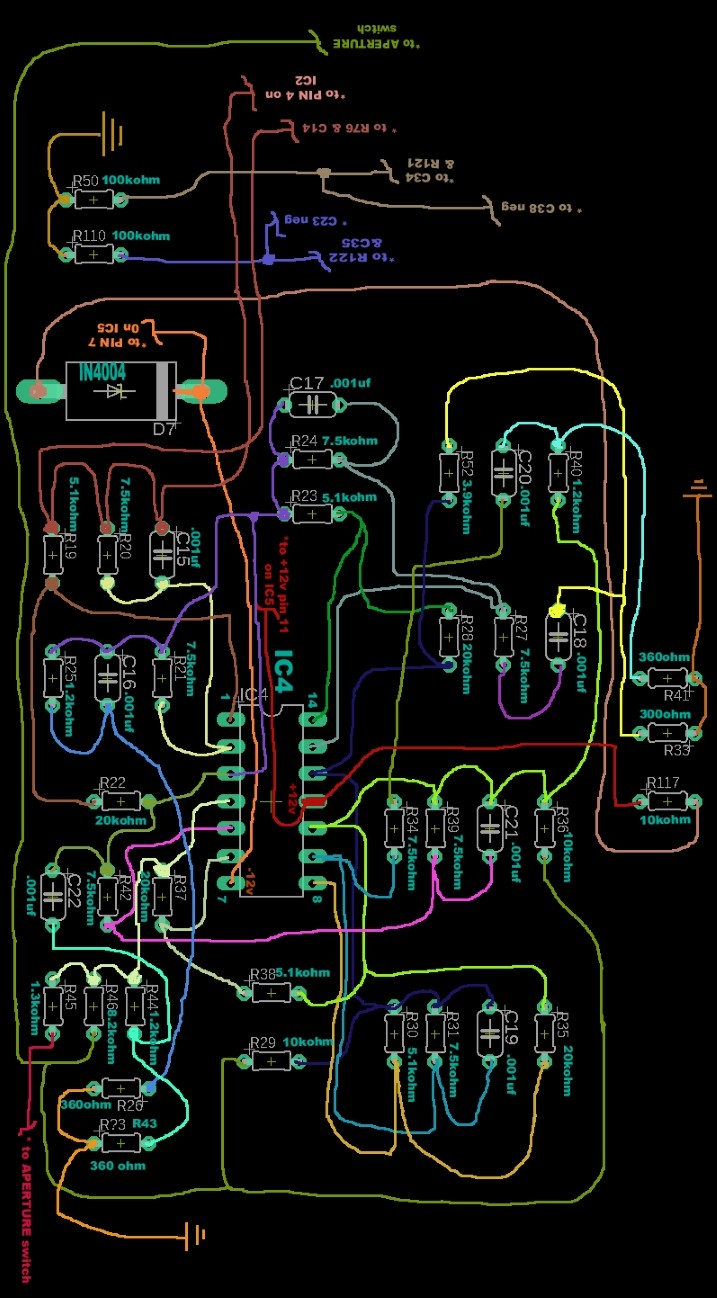

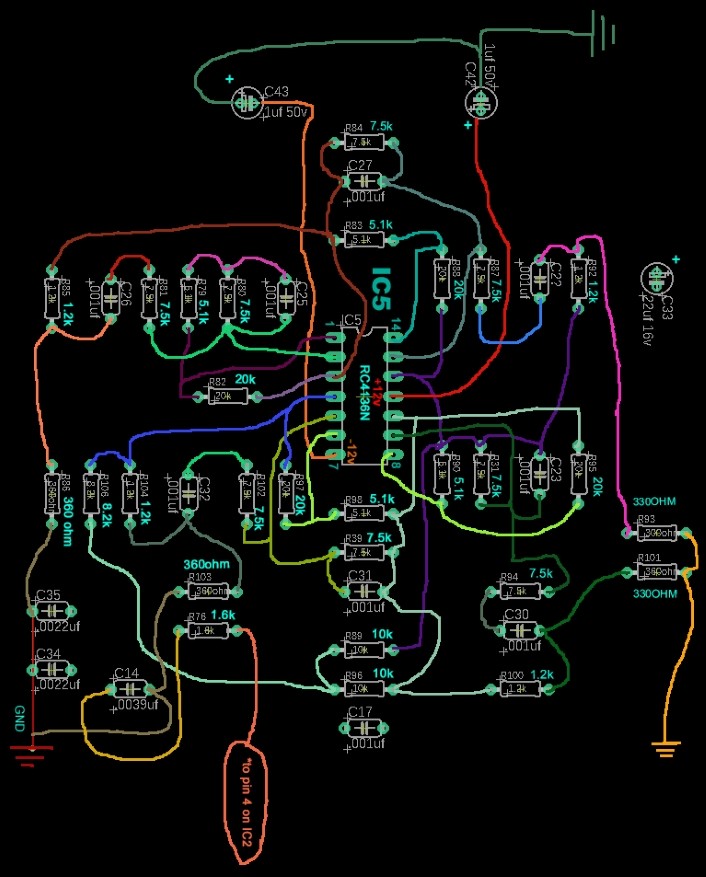

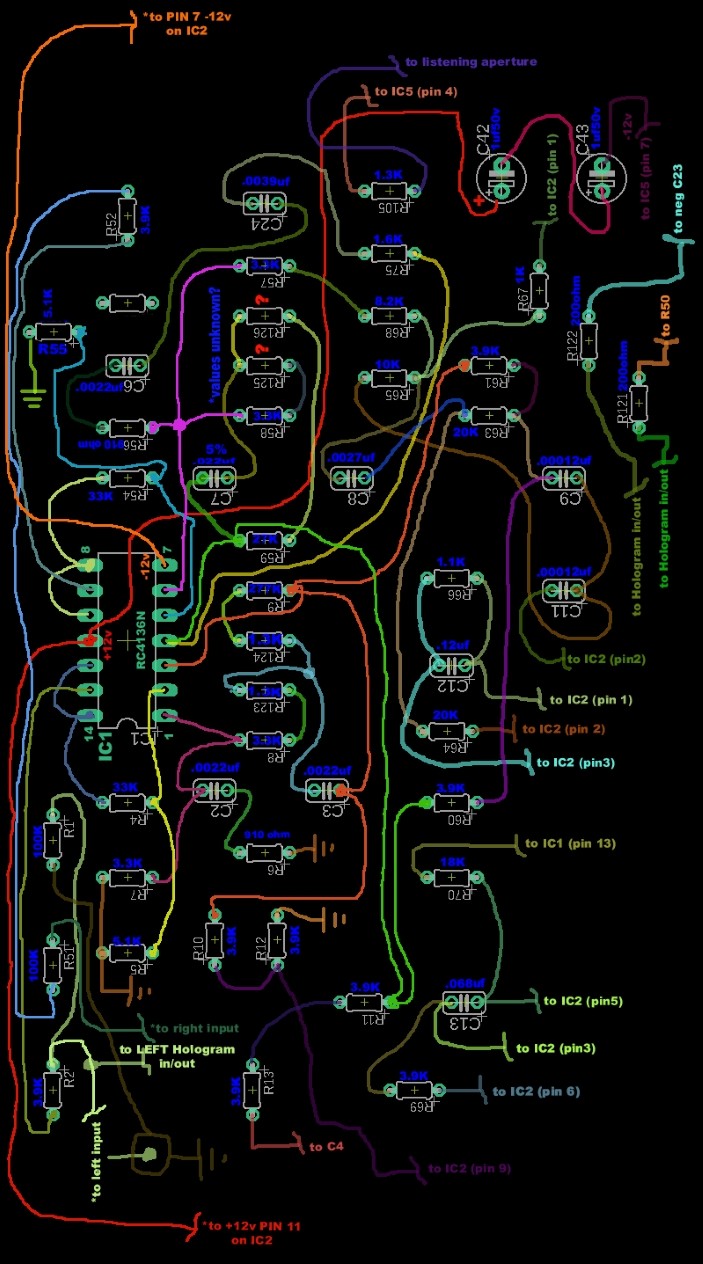

I do have a mystery for a couple of resistor values in relation to the pins on one of the IC's. I can't identify them in the circuit schematic. I will have to crop that section and show you the two mystery values sometime later.

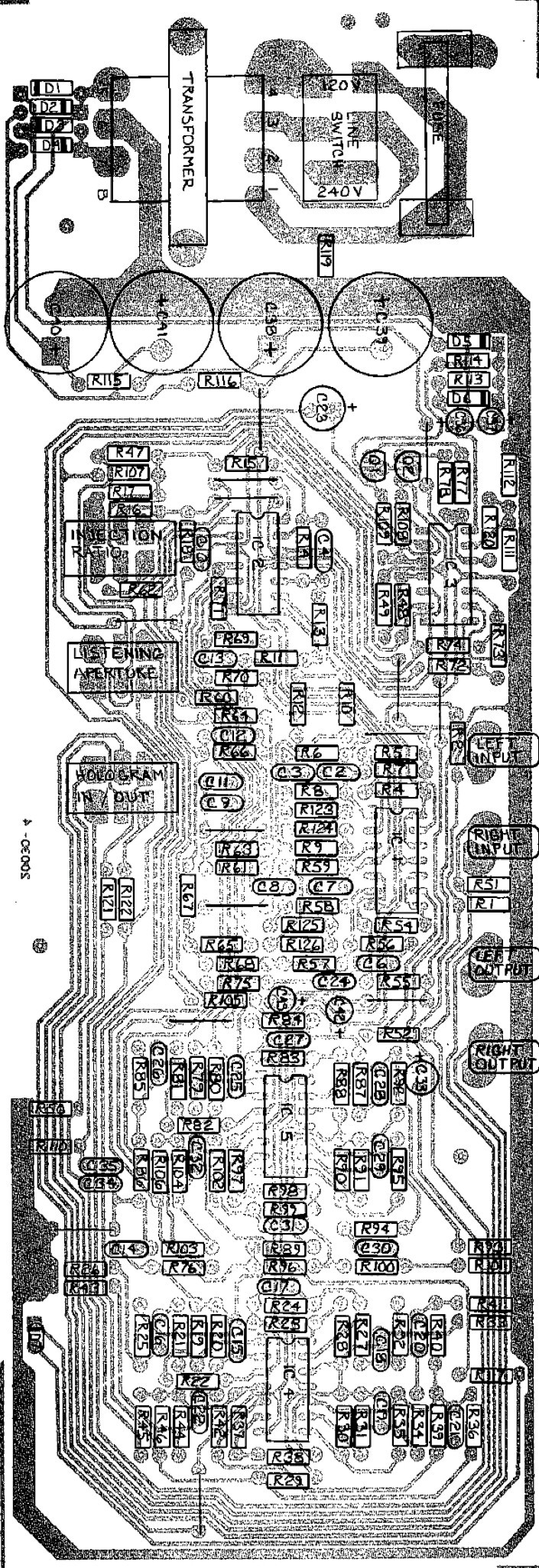

Just wondering if you can identify these values and solve this mystery. Other than that, the schematic is easy to follow, just very hard to see some of the layout due to poor print quality. I could locate these on the CB, but I don't want to mess with the current C9 in my system now. It would be easier if someone like yourself could identify these resistors and confirm the actual values. Not many people would know this unless you service these units.
If you think that you can identify these, please let me know, and I will show you the locations in question.
Otherwise, I will have to identify them on the actual board, and determine the values there by the value markings. It really seems strange that these two are so unclear. Either they were forgotten in the schematic drawing, or perhaps a change was made. I need to figure this out. There does seem to be some disagreement between the parts list values, and what the schematic shows. Seems someone made an error here, or perhaps not.
If you are not comfortable divulging this information, I understand. Thought I would ask since you are the expert on rebuilding the C9.
Thanks for your help.
And BTW: Since you ragged on JB about Carter, you left out the "E" in Boeing.......just messing with you. But I thought it was funny what you said. I assume you meant Boeing?

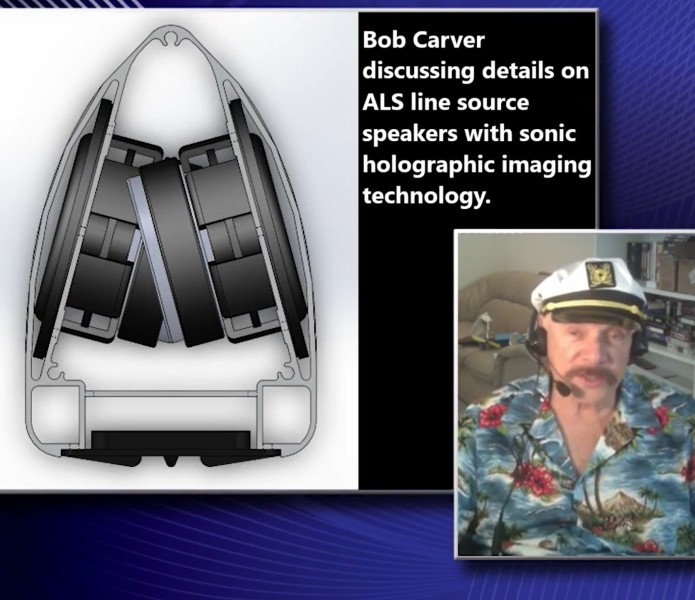

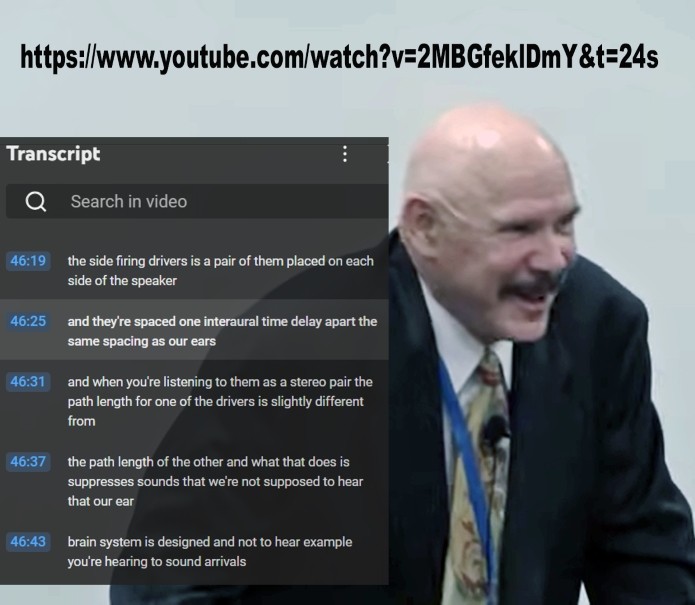

As for the "Doppler" reference, I think that needs to be avoided, as to not confuse people anymore on how this circuit works. It is complex enough for making people understand exactly what it really is, so let's stick with Bob's white papers on this technology. This would be helpful for this thread.
Thanks.
As for the last post,
Ok, so I remembered the FB Carver Sonic Holography group, started by John Smallwood. The best thing about this site/group is that they know pretty well what recording really respond to the C-9 unit.
Sure, as I myself have learned through experience many (about 90 percent of my library) very interesting sound tracks which make this unit noteworthy to say the least. The discs that I sent mrchipster are going to be very enlightening to him as to just how much these recordings come into play using the C9. It will be very interesting to hear his thoughts about these.
Thanks for posting that information.
