Zen Triode SE84C

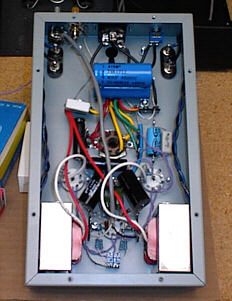

Pictured above - inside view  of
the Zen Triode SE84C

add to cart
buy now


View Cart or check out.


ZEN TRIODE AMPLIFIER
MODEL SE84C

specifications:

Power output:
around 5 watts per channel

Operation: Class A1

Frequency response:
25Hz-25Khz (+/- 3 dB)
30Hz-20KHz (+/- 1.5 dB)

Hum and noise less than 1.5 millivolts

Input impedance:
100K

Output impedance: 0.8 ohms

Stable into 2 ohm speaker loads!!!

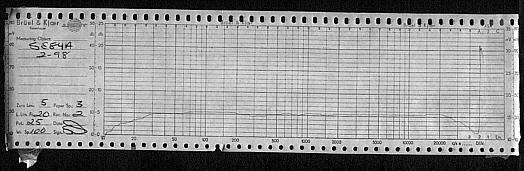

Frequency response


Click here for larger image



Recommended Speakers for the SE84C





REVISION HISTORY

This amplifier was released in 1997 as the SE84.  It was then revised to an SE84A in 1998.  The following year it was again revised to an SE84B and then in 2000 it became an SE84C where it has been ever since.

There is also a tweaked-out version of this amp called the "Select" model SE84CS.  Same amp, just different color with a few different parts.




An owner's manual has been provided here for your additional information.
(PDF format)

SE84C SCHEMATIC

NOTICE:
Download Acrobat Reader to view and print schematics on line.

Features | Specs | Ordering/Misc. | Reviews

"A NEW STANDARD OF FIDELITY "

"Zen puts the imaging capabilities of most tube amps way in the back seat!
... I can't honestly say I've heard any better."

-Dave Lancaster, Detour Audio
